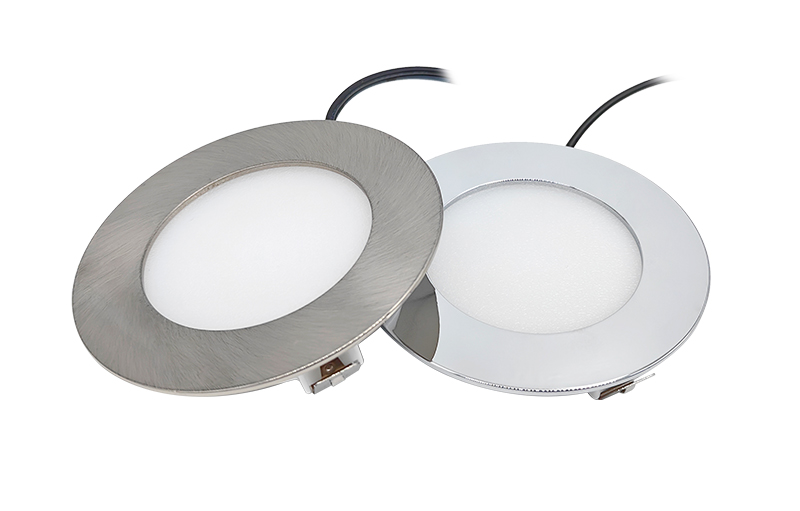

IQ02-12V Recessed Round LED puck light
Short Description:
Advantages：

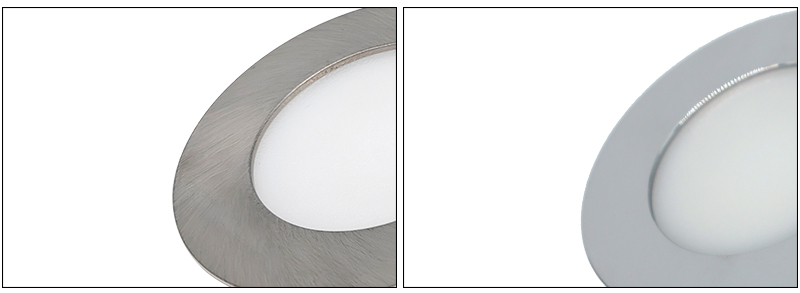

1.Usually having Silver or Black sleek finish,you can customize the finishes to perfectly match your aesthetic preferences.(As Picture below)
2.Mini round style,low weight for easy installation.
3.12V 1.5W ultra low power, surface lighting source is soft and even.（For more parameter details,Pls check Technical Data part,Tks）
4.Competitive price,reliable quality,durable using,Very cheap for big sales.
5. Free samples welcome to test
( For more details, Pls check VIDEO Part),Tks.
Product more details
1.Size Introduction,The front size is Φ66mm,the section size is Φ11mm.
2.Cable light up to 1500mm,direct connection to the 12V DC drive for power supply.

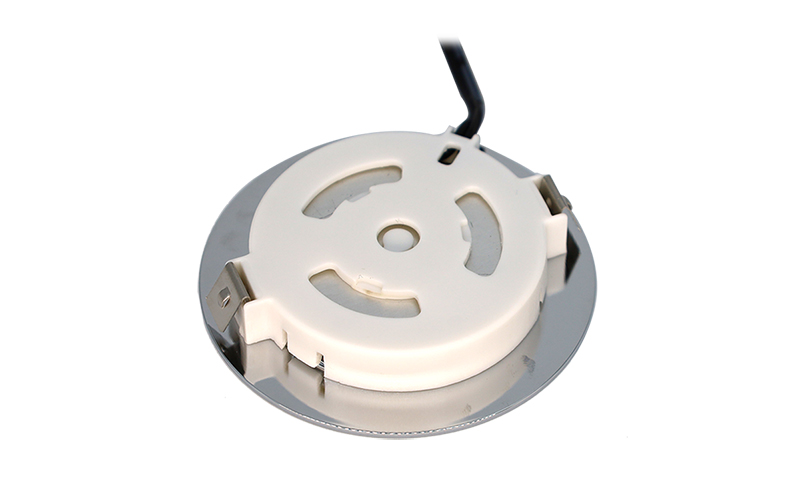

3.Installation way,it's recessed mounting,we recommended groove size is Φ60*12mm,suitable for all wooden cabinets

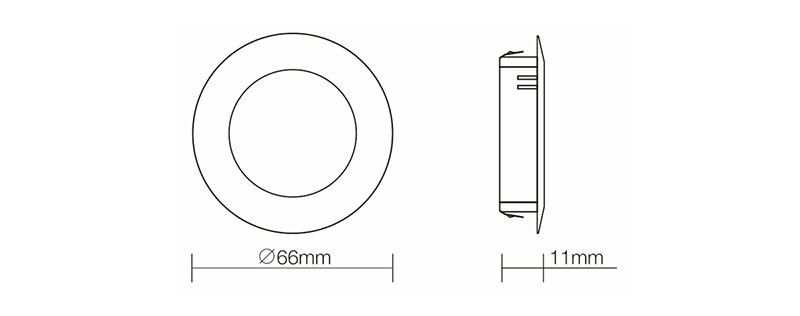

Picture1:Product plane size

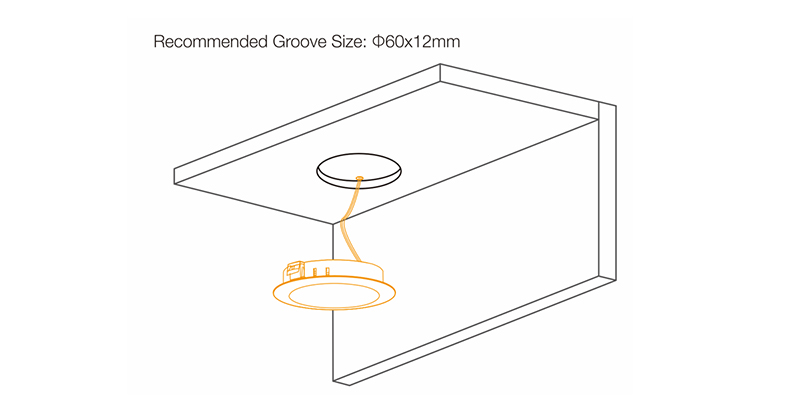

Picture2:Installation

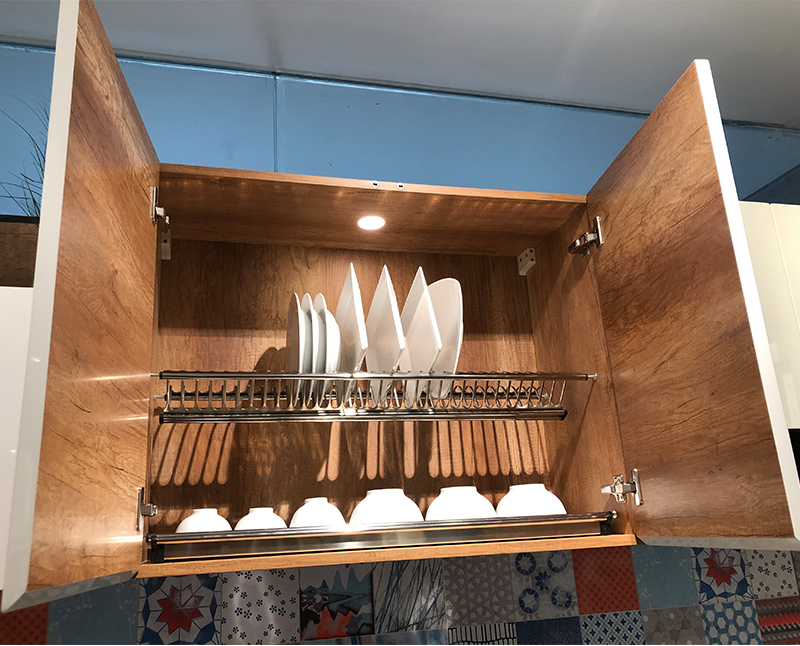

1.The lighting source of this product emits a soft and even glow, providing optimum illumination to your cabinets.

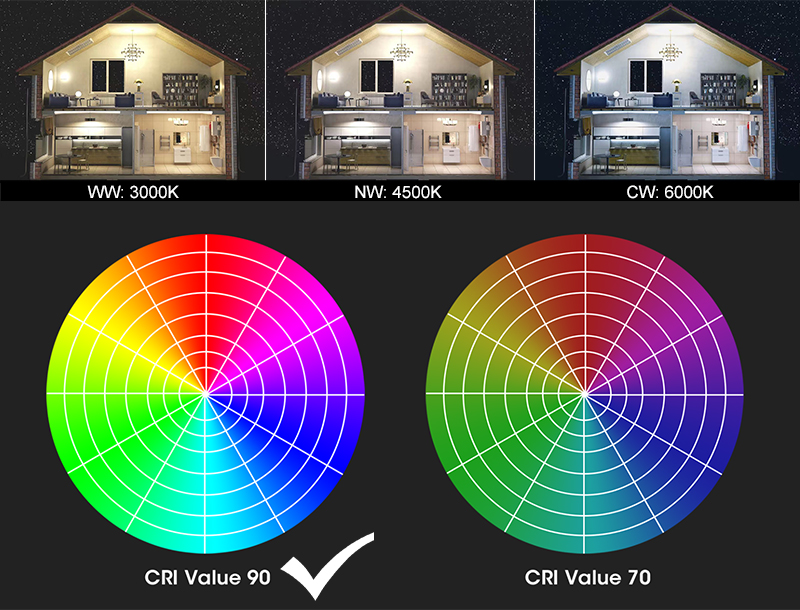

2.With three color temperature options – 3000k, 4000k, and 6000k – you can adjust the lighting(warm,neutral white or cool white) according to your desired ambiance.
3.Additionally, To make your item's colors appear vivid and true,we set the CRI (Color Rendering Index) of over 90.

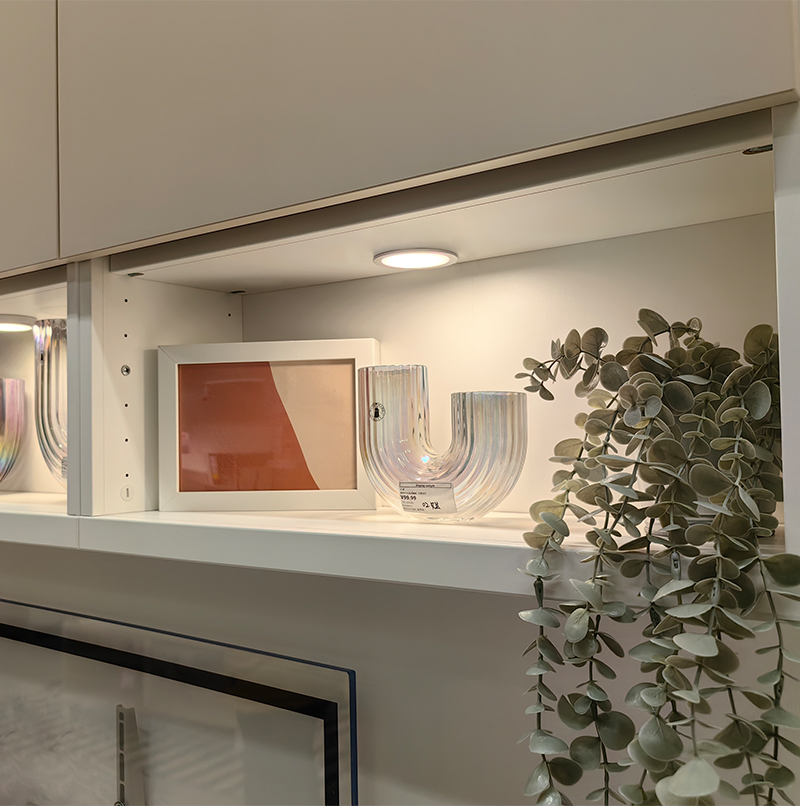

Round LED under cabinet lights are incredibly versatile and have a wide range of applications. They are perfect for illuminating homes and offices, providing bright and efficient lighting solutions. These lights also excel in display case lighting, making sure that your valued items are beautifully highlighted and showcased. Additionally, they can be used for accent lighting, adding a touch of ambiance and elegance to any space.
About other series,You can look this: spotlight series.(If you want to know these products,please click on the corresponding location with blue color,Tks.)

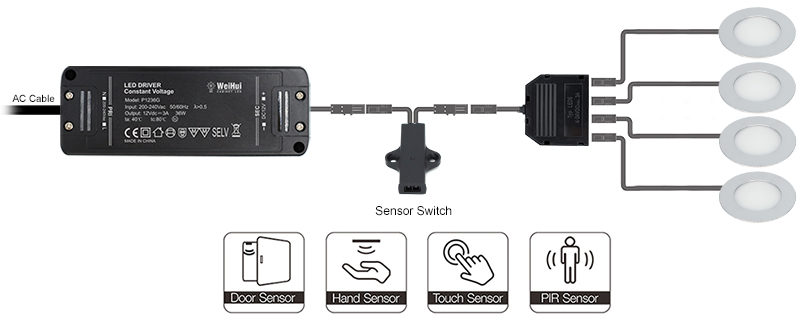

For Cabinet Wooden Led Puck Lights,You have two Connection and Lighting solutions.The first is direct connection to the drive for power supply. The second is need to connect LED sensor switch and LED driver to be as a set.
( For more details, Pls check Download-User Manual Part)
LED Common Driver& LED Sensor series.

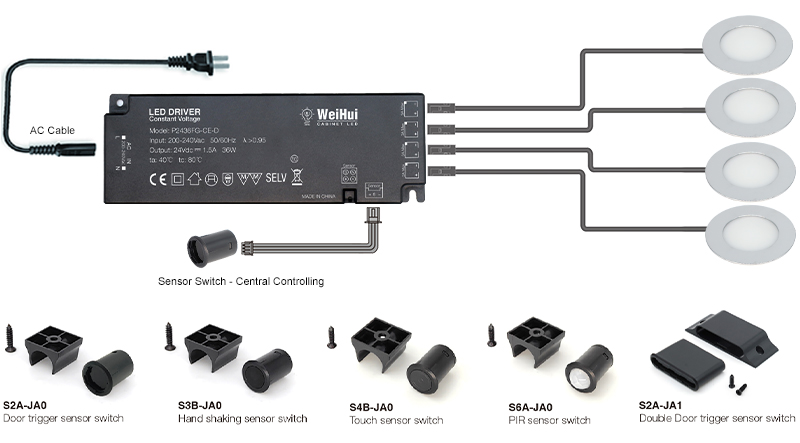

Picture 2: LED Smart Driver + LED Central controlling Sensor Switch.
1. Part One: LED Puck Light Parameters
| Model | IQ02 | |||||
| Installation Style | Surfaced Mounting | |||||
| Wattage | 1.5W | |||||
| Voltage | 12VDC | |||||
| LED Type | SMD2835 | |||||
| LED Quantity | 24pcs | |||||
| CRI | >90 | |||||
2. Part Two: Size information
3. Part Three: Installation

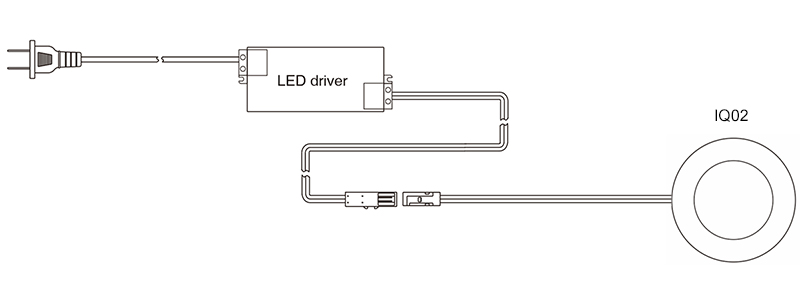

4. Part Four: Connection Diagram
