S7B-A3 2 Key Defogger Capacitive LED Mirror Touch Sensor With Dimmer
Short Description:
Advantages:
1.【 characteristic 】Mirror Sensor， Installed behind a mirror or wooden board, Touch the mirror or board to control the switch.
2.【 more beautiful】Switch installation rear mirror can not see the switch accessories, just see the backlight exposed touch mark, beautiful.
3.【easy installation】3M sticker, no slot drilling, more convenient installation.
4. [Multi-function] The brightness of the light can be adjusted at any time, and it has the function of removing fog.
5.【Reliable after-sales service】With a 3-year after-sales guarantee, you can contact our business service team at any time for easy troubleshooting and replacement, or have any questions about purchase or installation, we will do our best to help you.
The back has a white and blue backlight to display the switch status at any time, and the fog removal function can remove the water mist in time.
The switch sticker is affixed with the switch parameters, and 3M sticker is more convenient to install.
With just a quick touch, you can effortlessly turn the lights on or off, allowing you to create the perfect ambiance in your bathroom. And with the option of constant touch, you can easily dim the brightness to suit your preference. But that's not all - this touch switch also comes with an anti-fog foil. The safety design of electric heating and temperature-controlled defogging ensures a clear view every time you step in front of the mirror. No more hand-rubbing or wiping to get rid of fog! The lights and mist have independent switches, allowing you to open them simultaneously without any hassle.
Mirrored switch can be used in smart dressing room, bathromm where an individual can easily control the intensity and brightness of the mirror's lighting with just a touch, creating a personalized ambience for getting dressed or applying makeup.
Scenario 1
Scenario 2
1. Separate Controlling system
When you use the normal led driver or you buy led driver from other suppliers, You can still use our sensors.
At first, You need to connect led strip light and led driver to be as a set.
Here when you connect led touch dimmer between led light and led driver successfully, You can control the light on/off.
2. Central Controlling system
Meanwhile, If you can use our smart led drivers, You can control the whole system with only one sensor.
The sensor would be much competitive. and No need to worry about compatibility with led drivers too.
1. Part One: Mirror Switch Parameters
| Model | S7B-A3 | S7D-A3 | ||||||
| Function | ON/OFF/Dimmer | ON/OFF/Dimmer/CCT Change | ||||||
| Size | 93x35x10mm, 88x62x6mm(Clips) | |||||||
| Voltage | DC12V / DC24V | |||||||
| Max Wattage | 60W | |||||||
| Detecting Way | Touch Tyoe | |||||||
| Protection Rating | IP20 | |||||||

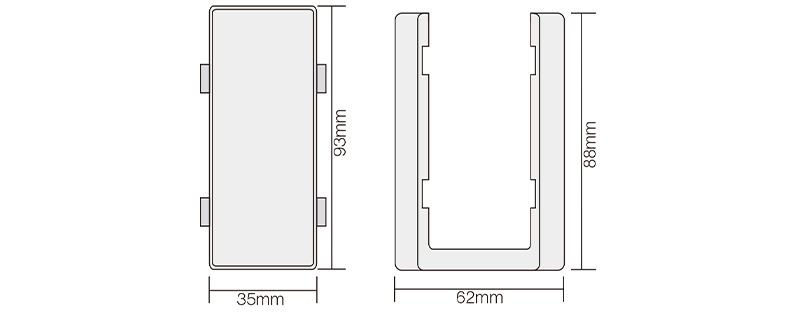

2. Part Two: Size information

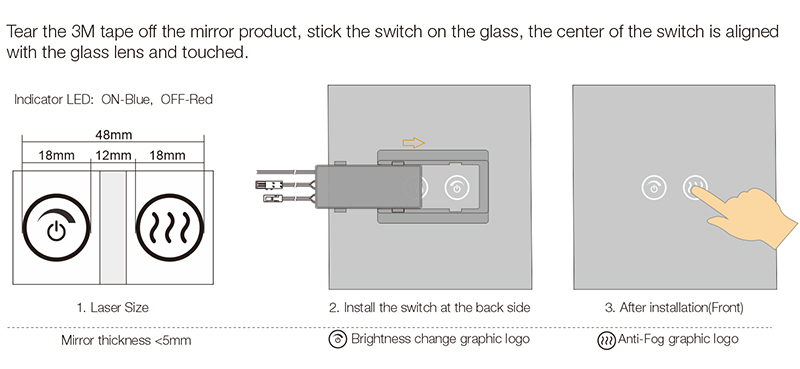

3. Part Three: Installation

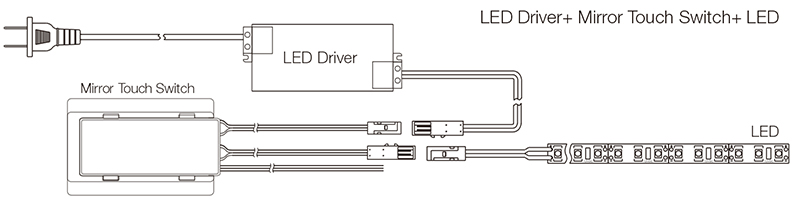

4. Part Four: Connection Diagram
