2W Mini Recessed Round puck light
Short Description:
Advantages：
1.Usually having Silver or Black finish,you can customize the finishes to perfectly match your aesthetic preferences.(As Picture below)
2.Mini round style,low weight for easy installation.
3.12V 2.3W low power, surface lighting source is soft and even.
4.Competitive price,reliable quality,durable using.
5. Free samples welcome to test
( For more details, Pls check VIDEO Part),Tks.

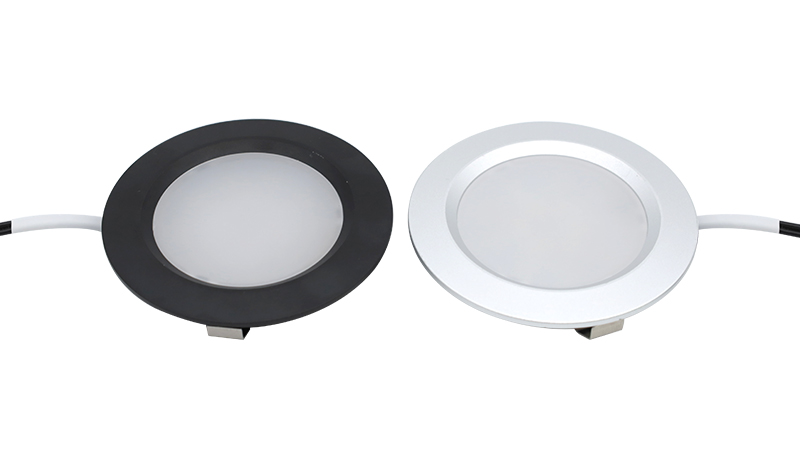

Picture 1:Black&Silver Finish

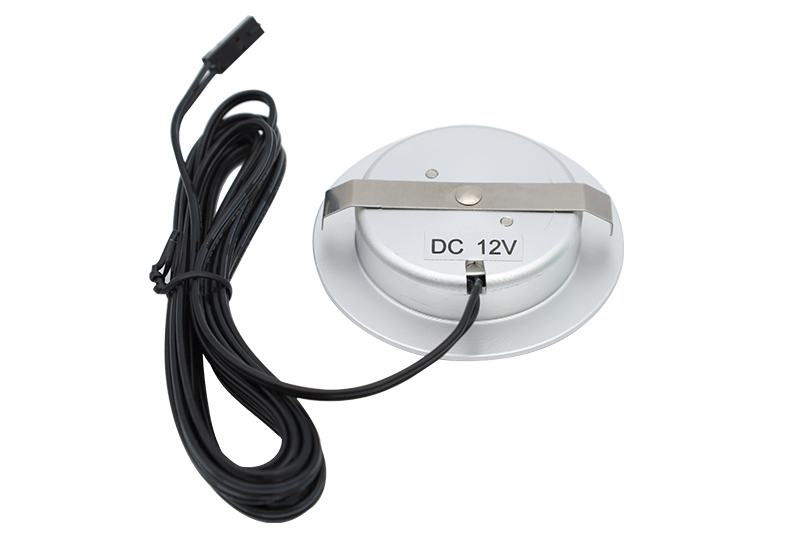

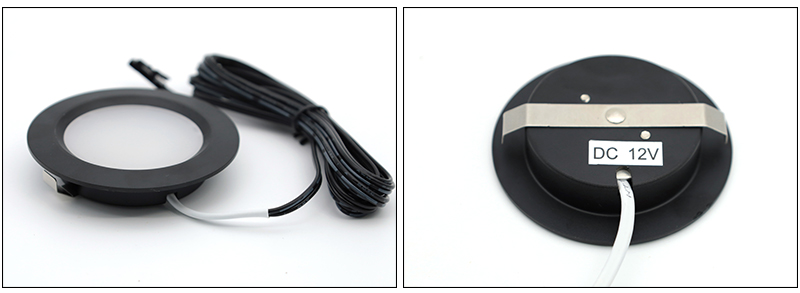

Picture 2:12v 2.3w low power
Product more details

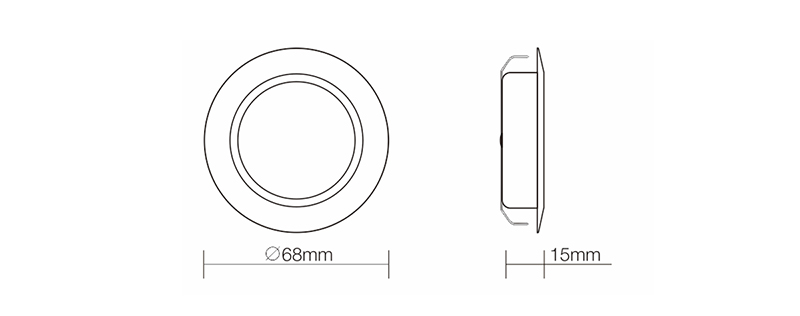

1.Size Introduction,The front size is Φ68mm,the section size is Φ15mm.
2.Cable light up to 1500mm,direct connection to the drive for power supply.

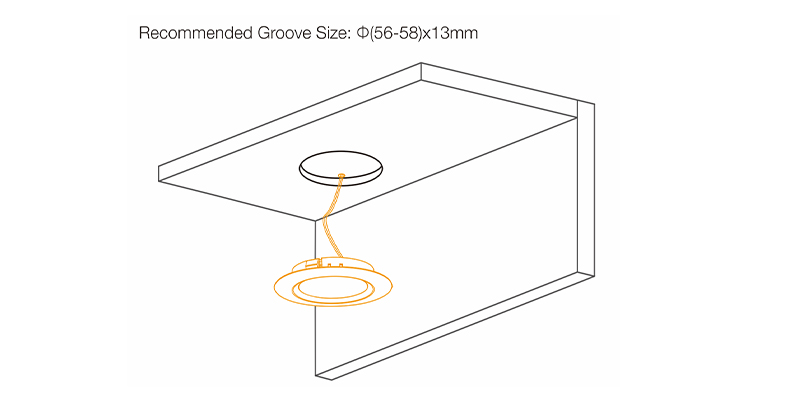

3.Installation way,it's recessed mounting,we recommended groove size is Φ(56-58)*13mm,suitable for all wooden cabinets
1.The lighting source of our Mini LED Puck Lights offers a soft and even lighting,which the illuminated object emits luster,bringing warmth and illumination to your desired area.

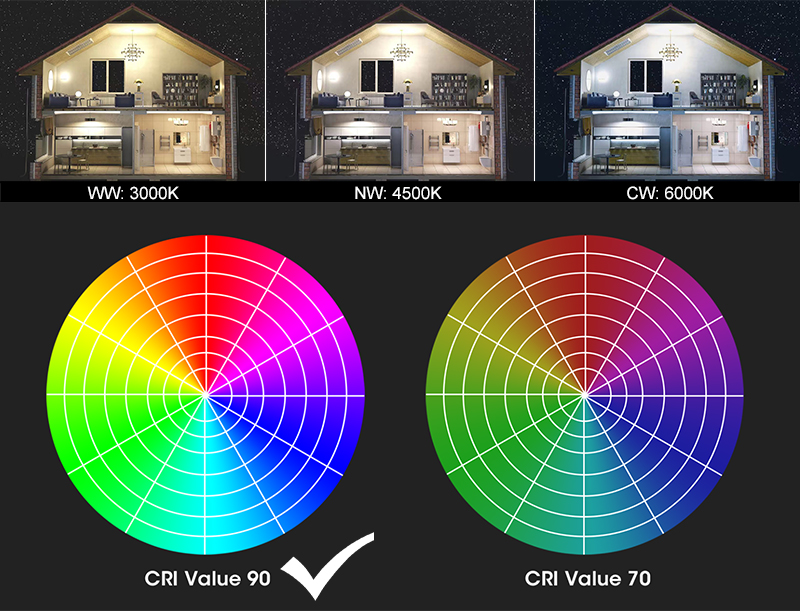

2.With three color temperature options (3000k, 4000k, 6000k), you can easily create the desired ambiance for any occasion.
3.The CRI (Color Rendering Index) of over 90 guarantees accurate and vibrant color representation, allowing your space to look its best.
In generally, Our Recessed cabinet LED puck light not only plays a lighting role, but also provides an elegant aesthetic vision.

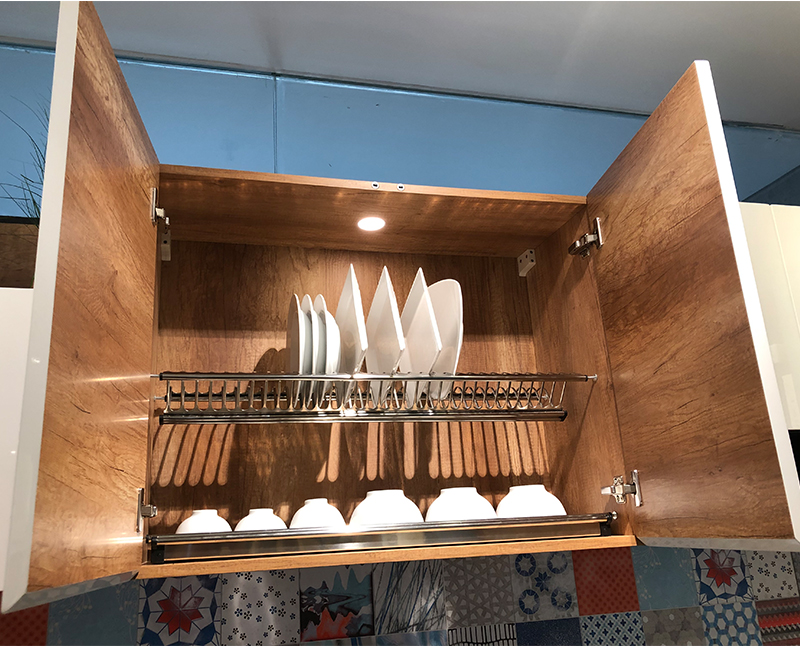

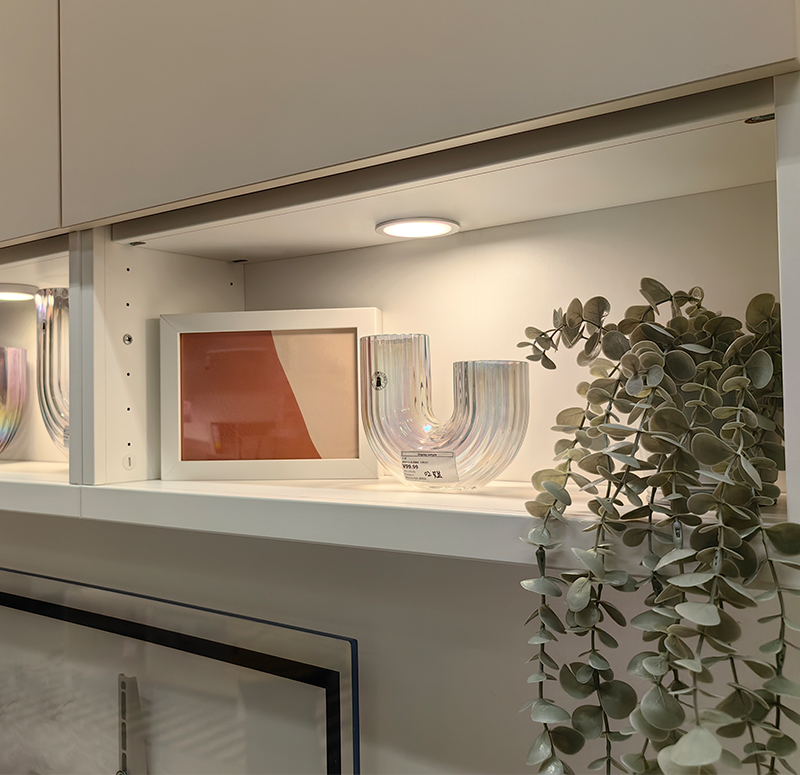

1.Our 12V DC Round puck light is perfect for a variety of applications in homes and offices or schools,etc. They can be used for illuminating spaces such as display cases, ensuring that your valued items are beautifully showcased. In addition, these lights are more ideal&convenient for providing under cabinet lighting in the kitchen, allowing for easy access to your kitchen cabinets. Their compact size makes them perfect for accent lighting, adding a touch of ambiance to any space.
2.For this spotlight,we have other series,apply many applications.You can look this: spotlight series.(If you want to know these products,please click on the corresponding location with blue color,Tks.)
For Mini LED puck lights,You have two Connection and Lighting solutions.The first is direct connection to the drive for power supply. The second is need to connect LED sensor switch and LED driver to be as a set.
( For more details, Pls check Download-User Manual Part)

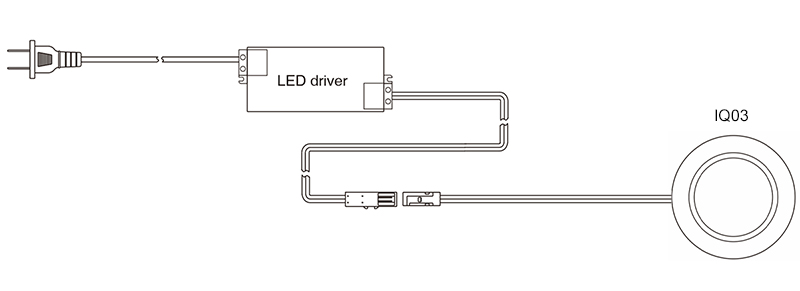

Picture 1:directly connect driver

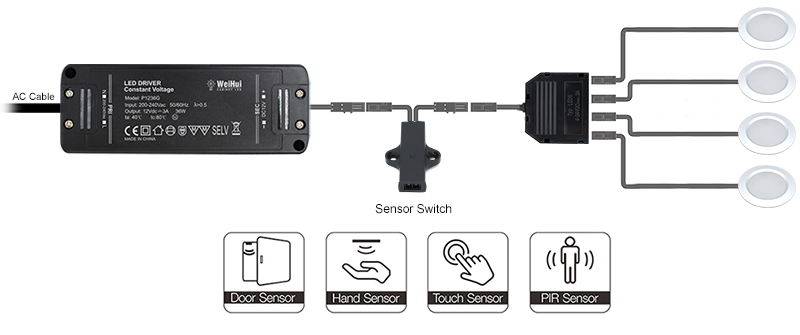

Picture 2: LED Driver + LED Sensor Switch ( Touch sensor here)
1. Part One: LED Puck Light Parameters
| Model | IQ03 | |||||
| Installation Style | Surfaced Mounting | |||||
| Wattage | 2.3W | |||||
| Voltage | 12VDC | |||||
| LED Type | SMD2835 | |||||
| LED Quantity | 15pcs | |||||
| CRI | >90 | |||||
2. Part Two: Size information
3. Part Three: Installation
4. Part Four: Connection Diagram
