Dual Function IR Sensor-Single Head
Short Description:
Main Features:
1. Dual Function Led Sensor Switch is designed for dual function and dual installation mode, you can choose the door trigger/hand shaking sensor function, recessed/surfaced installation mode according to your needs.
2. The switch sensor head is relatively small, whether it is recessed or surfaced , it is more hidden, and the integration of the cabinet will be better, and it will not be very obtrusive.
3. The delay function of the Led Ir Sensor Switch will be softer and protect the eyes.
4. You can customize the color, line length, sensing distance, function you want.
Option 1: SINGLE HEAD IN BLACK
SINGLE HEAD IN WITHE
Option 2: DOUBLE HEAD IN BLACK
DOUBLE HEAD IN WITHE
More Details:
1. The Dual Function Led Sensor Switch adopts split design, line length: 100+1000mm, according to need can also buy switch extension cable to increase the line length.
2. Separate design to reduce the failure rate, even if there is a failure can easily identify the cause of the failure.
3. The sticker on the Led Ir Sensor Switch cables also show our details to you. To power supply or to light with different marks ,It remind you the positivie and negative clearly too.
Dual installation and dual functions, so that the 12v Dc Light Sensor has more Diy space, increase product competitiveness, reduce inventory.
Dual Function Led Sensor Switch has the function of door trigger hand shaking, which can be applied to different scenarios according to your needs
1. Door trigger: door open light on, door close light off, practical and power saving
2. hand shaking sensor: Wave your hand to control the light on/off
One of the features of our hand shaking sensor/Recessed Door Switch For Cabinet is its versatility. it can use almost anywhere indoor, such as furniture, cabinet, wardrobe.etc
It can be used for surfaced or recessed head installation, And it's very hidden，making it suitable for a wide range of applications.
It can handle up to 100w Max, making it a reliable choice for LED light and LED strip light systems.
Drawing of two connection examples
( For more details, Pls check Download-User Manual Part)
1. Separate Controlling system
When you use the normal led driver or you buy led driver from other suppliers, You can still use our sensors.
At first, You need to connect led strip light and led driver to be as a set.
Here when you connect led touch dimmer between led light and led driver successfully, You can control the light on/off.
2. Central Controlling system
Meanwhile, If you can use our smart led drivers, You can control the whole system with only one sensor.
The sensor would be much competitive. and No need to worry about compatibility with led drivers too.

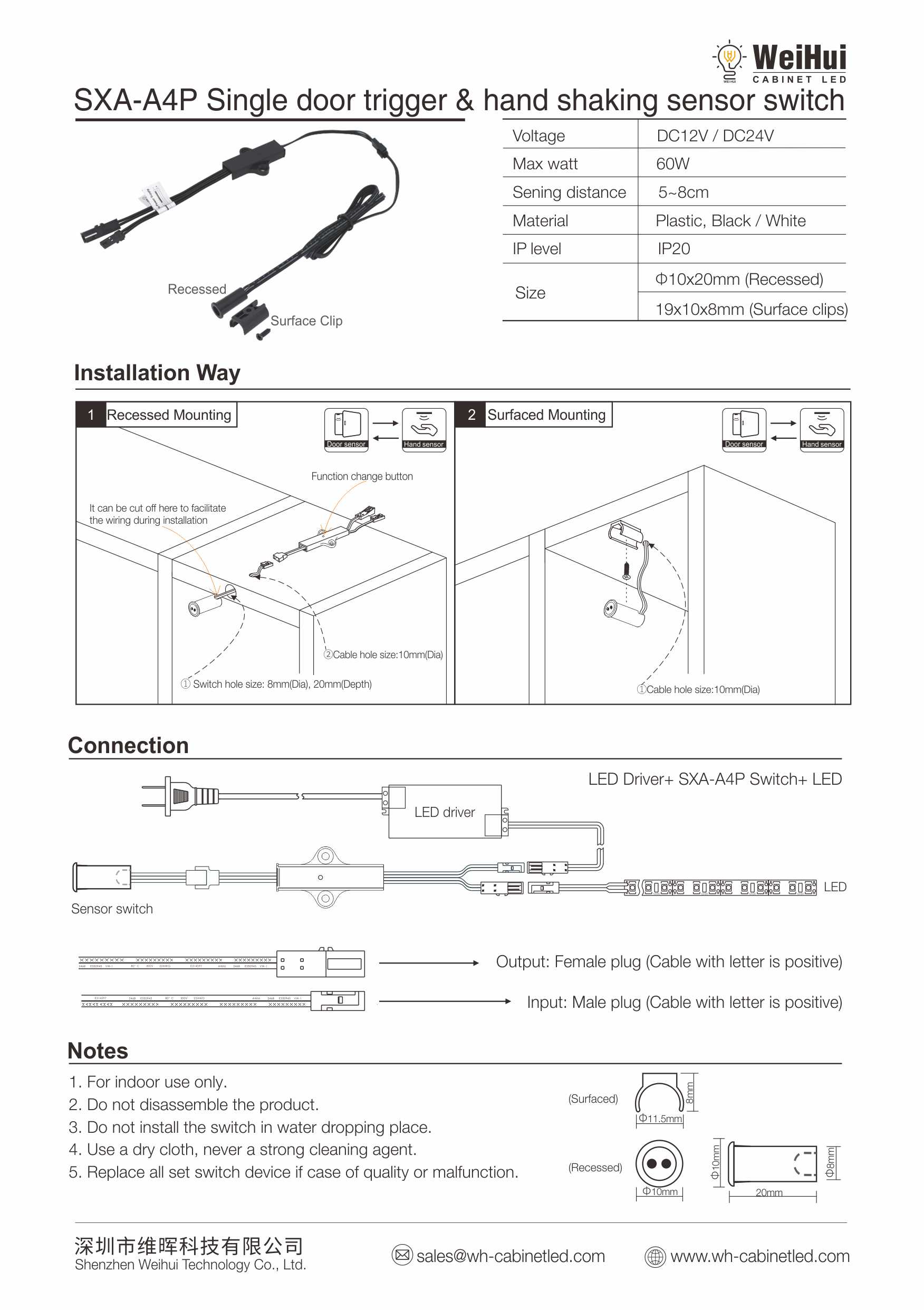

1. Part One: IR Sensor Switch Parameters
| Model | SXA-A4P | |||||||
| Function | Dual function IR Sensor(Single) | |||||||
| Size | 10x20mm(入Recessed),19×11.5x8mm(卡件Clips) | |||||||
| Voltage | DC12V / DC24V | |||||||
| Max Wattage | 60W | |||||||
| Detecting Range | 5-8cm | |||||||
| Protection Rating | IP20 | |||||||
2. Part Two: Size information
3. Part Three: Installation
4. Part Four: Connection Diagram
