FC320W8-7 8MM Width Cob Led Cabinet Light
Short Description:
【Technical Data】8mm wide; cut size 25mm; 320LEDs/M; 8W/M, high quality material production.
【Color Rendering Index】Color Rendering Index>90, the object's color is more real, natural, reduce color distortion.
【Color Temperature】3000K/4000K/6000K is the main Type, But can be customized to different color temperatures.
【Various Quick Connector】quick connector, such as 'PCB to PCB', 'PCB to Cable', 'L-type Connector', 'T-type Connector' and so on.
【Constant Voltage Power Supply】Excellent adaptability, suitable for 12V universal power supply.
【Professional R&D and customization】Professional R&D team to customize according to your needs.
Competitive price with good quality and affordable price.
3 years warranty.
Free sample test is welcome.
The following Data are basic for COB strip light
We can make different quantity/Different Watt/Different Volt,etc
| Item Number | Product Name | Voltage | LEDs | PCB width | Copper thickness | Cutting Length |
| FC320W8-7 | COB-320 Series | 12V | 320 | 8mm | 28/28um | 25mm |
| Item Number | Product Name | Power(watt/meter) | CRI | Efficiency | CCT (Kelvin) | Feature |
| FC320W8-7 | COB-320 Series | 8w/m | CRI>90 | 80Lm/W | 3000K/4000K/6000K | ROLL TO ROLL |
Color Rendering Index >90, the object's color is more real, natural, reduce color distortion.

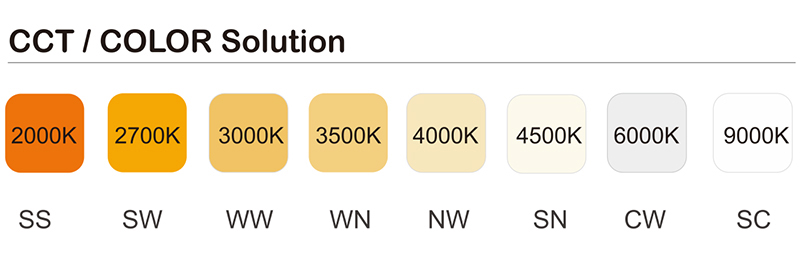

Color Temperature is welcome to customize from 2200K to 6500k.
Single color/Dual Color/RGB/RGBW/RGBCCT.etc

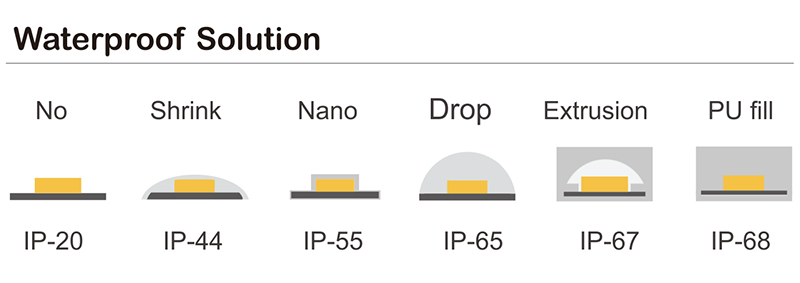

Waterproof IP Level, This COB strip is IP20 and can be customized with a waterproof and dustproof rating for outdoor, wet or special environments.

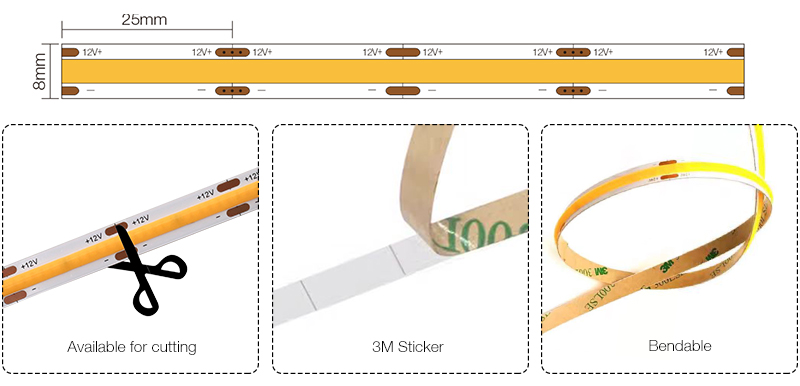

【25mm Cut Size】 More conducive to personalized design and universal fitment of quick connector.
【High Quality 3M Adhesive】Waterproof, strong adhesive force, compact structure, small size, without additional packaging and support, installation time and effort.

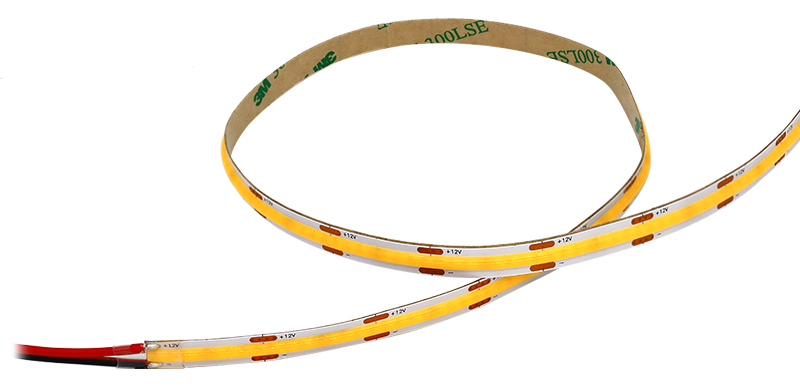

【Soft And Bendable】Suitable for all kinds of complex shapes of installation needs.

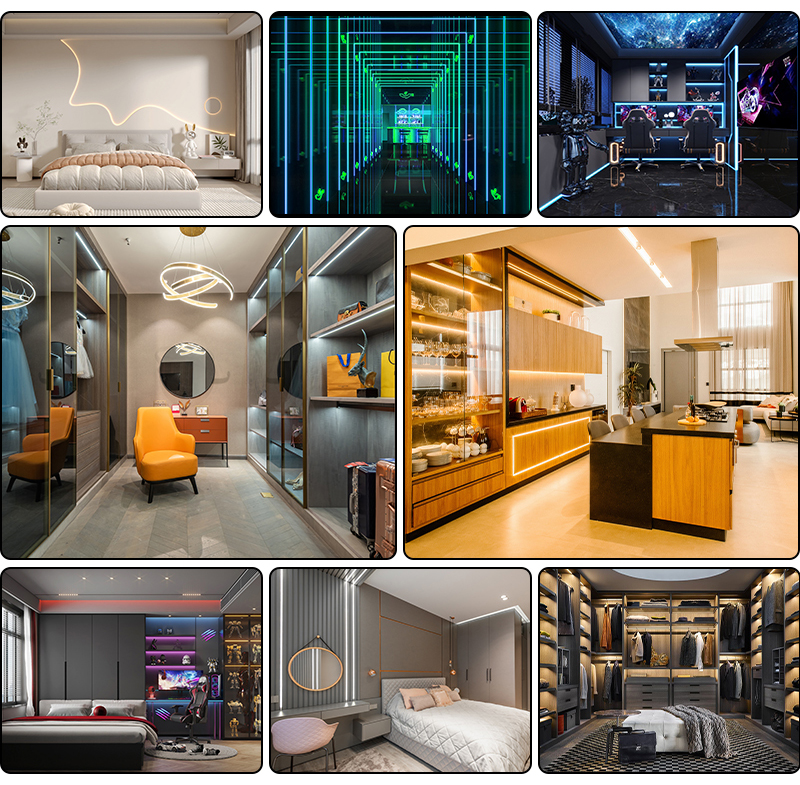

COB Strips can be installed invisibly, out of sight, out of mind, in a variety of corners where light is needed for decoration. Installing COB Strips under cabinets, wood paneling, corners, etc. will illuminate the area, reduce shadows, and enhance the ambiance.
Embedded in the cabinet, ceiling or wall, not only increases the practicality of the space, but also enhances the overall aesthetic. Compared with traditional lighting, COB strip significantly reduces energy consumption, in line with the requirements of green environmental protection.
The COB strip light is suitable for a variety of home decoration scenarios, including ceiling, background wall, cabinet, wine cooler and other locations for decorative lighting. Through invisible installation and even illumination, it can enhance the overall aesthetics and comfort of your home.

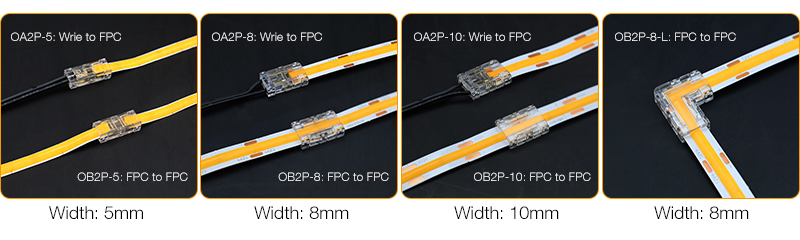

【Various Quick Connector】Applicable to various quick connector, Welding Free Design
【PCB to PCB】 For connecting two pieces of different COB strips, such as 5mm/8mm/10mm,etc
【PCB to Cable】Used to light up the COB strip, connect the COB strip and wire
【L-type Connector】Used to extend Right Angle Connection COB Strip.
【T-type Connector】Used to extend T Connector COB Strip.
When we use COB led strip lights in kitchen cabinet or furniture, We can combine with smart led drivers and sensor switches. Here it is a example of Centrol control smart system

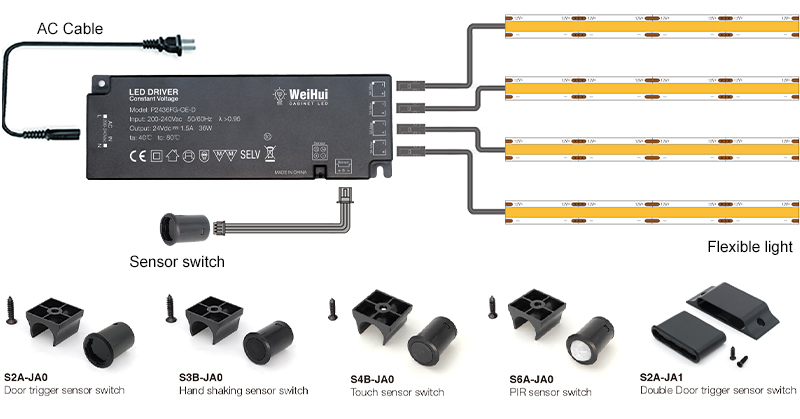

Smart LED Driver System with different sensors( Centrol Control)

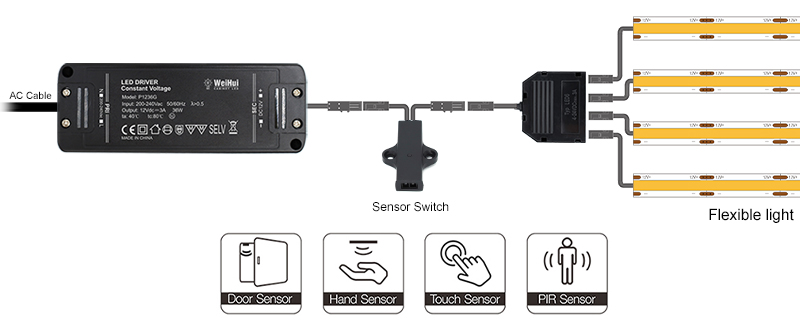

Smart led driver system-Separate Control
1. Part One: COB Flexible Light Parameters
| Model | FC320W8-7 | |||||||
| Color Temperature | 3000k/4000k/6000k | |||||||
| Voltage | DC12V | |||||||
| Wattage | 8W/m | |||||||
| LED Type | COB | |||||||
| LED Quantity | 320pcs/m | |||||||
| PCB Thickness | 8mm | |||||||
| Length of Each Group | 25mm | |||||||
2. Part Two: Size information and Installation
3. Part Three: Connection Diagram
