S1A-A5 Round Mechanical switch

Short Description:

Our mechanical touch switches are the perfect addition to enhance the aesthetics of furniture, with chrome finishes that look more textured, classic press switches, retro styles, and provide convenient lighting solutions.

WELCOME TO ASK FREE SAMPLES FOR TESTING PURPOSE


Product Detail

Technical Data

Video

Download

OEM&ODM Service

Product Tags

Why Choose this item?

Advantages:

1.【 characteristic 】The Mechanical Touch Switch is made of metal finishes for a more textured look.

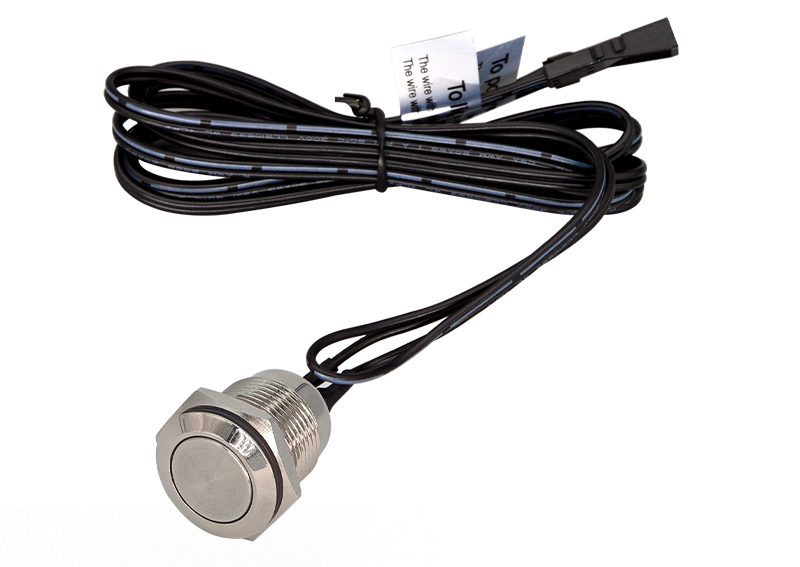

2.【 installation】Switch bottom thread design, embedded installation more stable.With a generous 1800mm cable, this Light Switch For Door offers flexibility in installation.
3.【Reliable after-sales service】With a 3-year after-sales guarantee, you can contact our business service team at any time for easy troubleshooting and replacement, or have any questions about purchase or installation, we will do our best to help you.

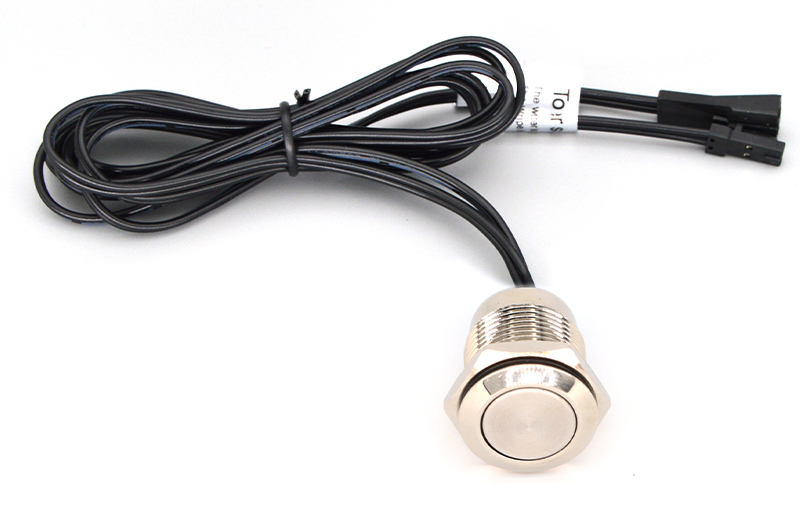

Mechanical Touch Switch

Product Details

The switch sticker has the detailed parameters and the connection details of the positive and negative terminals.

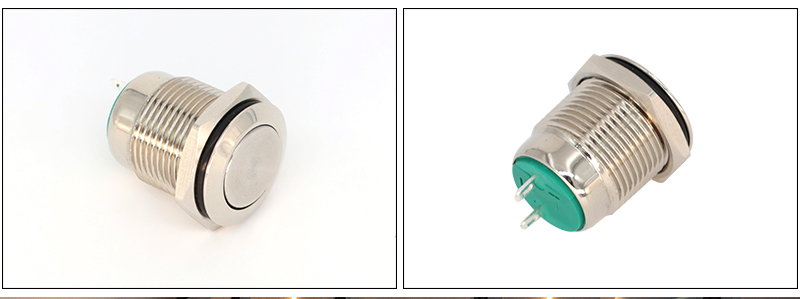

Round On/Off Switch

Metal finishes look more beautiful,The unique design of the installation position makes the installation more stable.

Mechanical Touch Switch

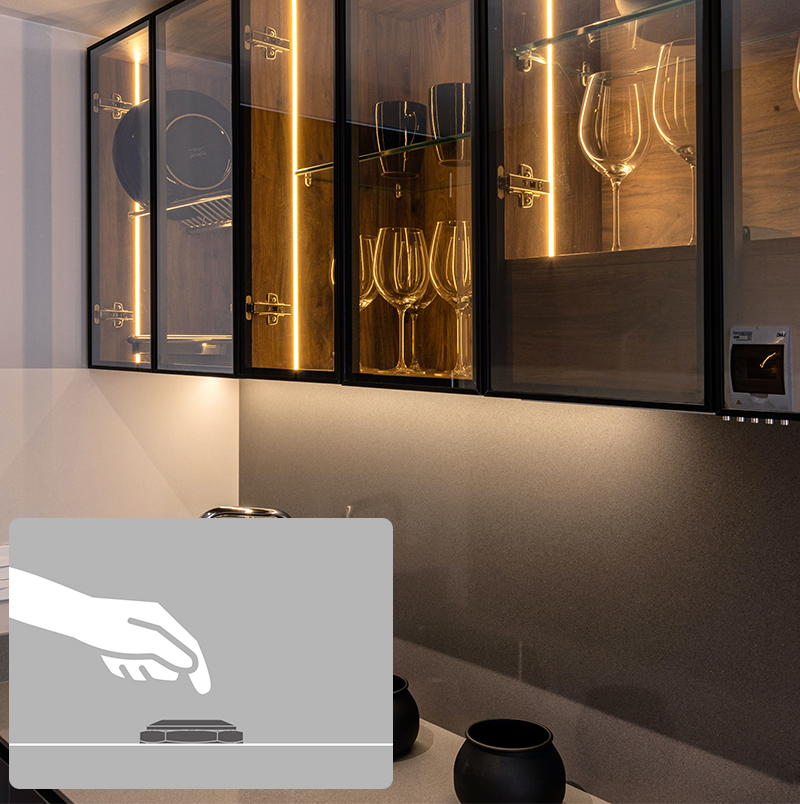

Function Show

With just a press of the button, the lights up, providing a soft and gentle illumination. When you no longer require the LED light, simply press the button again to turn it off.  This easy-to-use functionality ensures convenience and energy efficiency, as you can control the lighting as per your requirements.  Our Round On/Off Switch operates on DC12V/DC24V.

Round On/Off Switch

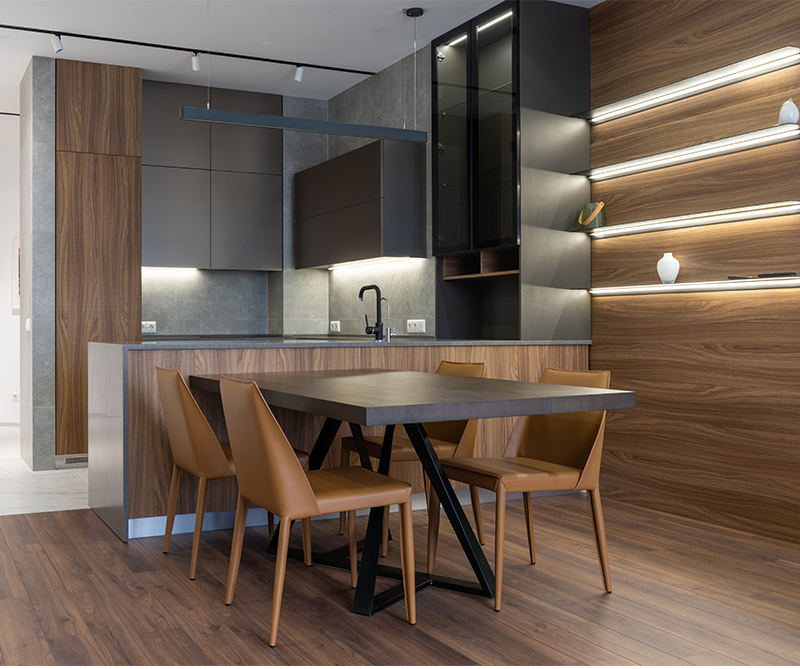

Application

The Mechanical Touch Switch is an ideal choice for enhancing the functionality and convenience of various spaces. Exquisite finish, stable installation design makes it suitable for a wide range of applications, including wardrobe doors, cabinets, bookcases, window cabinets, bedside cabinets, and many others.

Mechanical Touch Switch

Connection and Lighting solutions

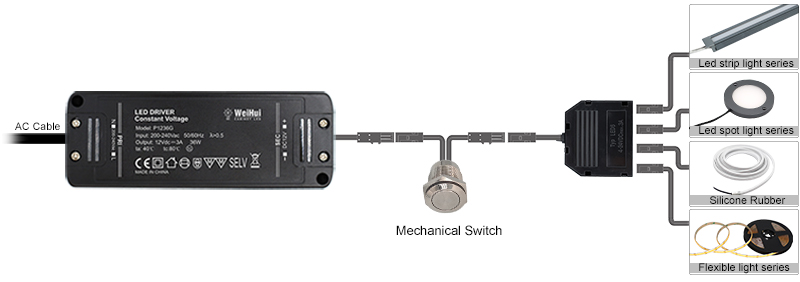

1.  Separate Controlling system

When you use the normal led driver or you buy led driver from other suppliers, You can still use our sensors.
At first, You need to connect led strip light and led driver to be as a set.
Here when you connect led touch dimmer between led light and led driver successfully, You can control the light on/off.

Round On/Off Switch

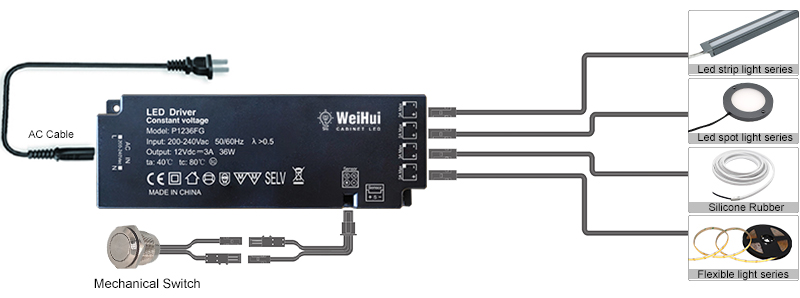

2.Central Controlling system

Meanwhile, If you can use our smart led drivers, You can control the whole system with only one sensor.
The sensor would be much competitive. and No need to worry about compatibility with led drivers too.

Mechanical Touch Switch

  • Previous:
  • Next:

  • 1. Part One: Mechanical Switch Parameters

    Model S1A-A5
    Function ON/OFF
    Size Φ18.8×25.3mm
    Voltage DC12V / DC24V
    Max Wattage 60W
    Detecting Range /
    Protection Rating IP20

    2. Part Two: Size information

    Flat Head Waterproof 2 Pin ONOFF Mechanical Touch switch01 (7)

    3. Part Three: Installation

    Flat Head Waterproof 2 Pin ONOFF Mechanical Touch switch01 (8)

    4. Part Four: Connection Diagram

    Flat Head Waterproof 2 Pin ONOFF Mechanical Touch switch01 (9)
