IMQ01-Recessed Cupboard LED Spot Light
Short Description:
Advantages：
1.Usually having Silver or Milk white finish,you can customize the finishes to perfectly match your aesthetic preferences.(As Picture below)
2.Mini round style,low weight for easy installation.
3.Using high brightness LED,which lighting source is enough, and surface lighting source is soft and even.
4.Low power,competitive price,reliable quality,durable using.
5. Free samples welcome to test
( For more details, Pls check VIDEO Part),Tks.

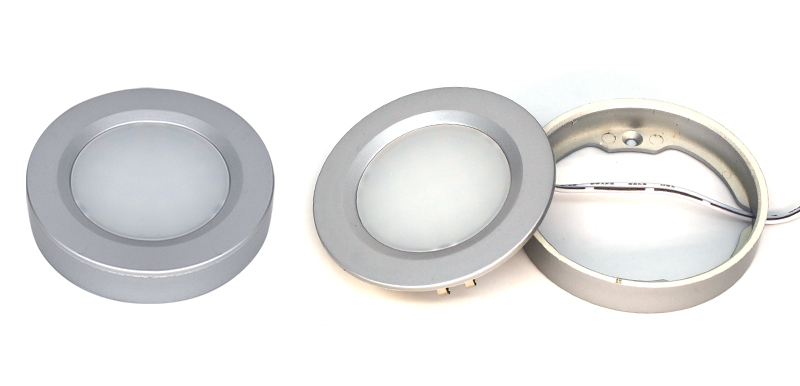

Picture1:Silver finish

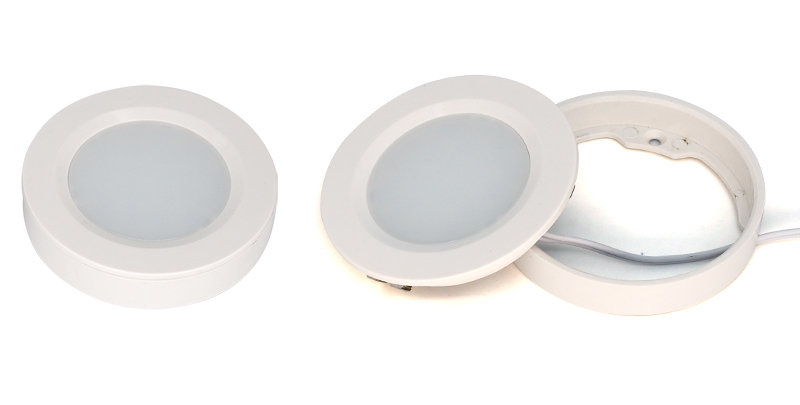

Picture2:Milky finish
Product more details
1.Size Introduction,The front size is Φ65mm,the section size is Φ12mm.
2.Cable light up to 1500mm,direct connection to the 12V DC drive for power supply.which save electricity, making them an energy-efficient choice.

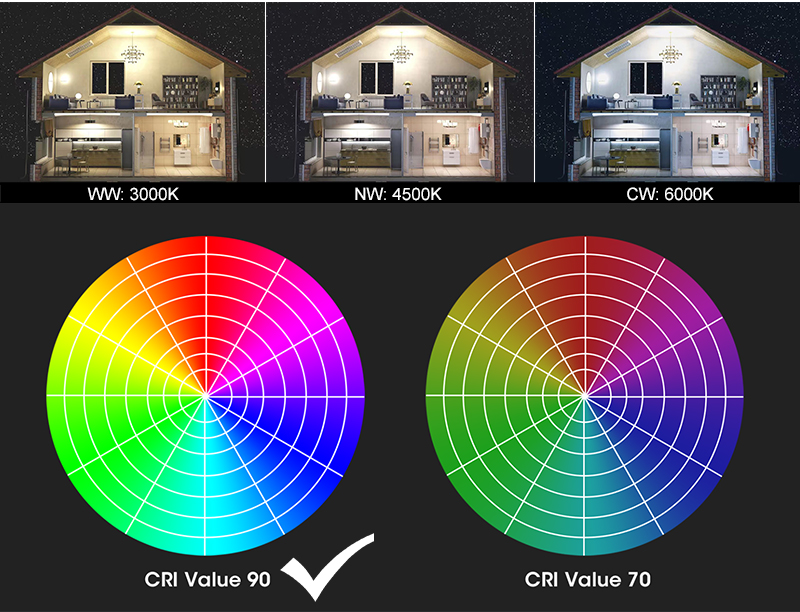

2.With three color temperature options - 3000k, 4000k, and 6000k - you have the flexibility to choose the perfect lighting tone that suits your preference.
3.Additionally,We boast a Color Rendering Index (CRI) level of above 90, ensuring accurate and vibrant color representation.

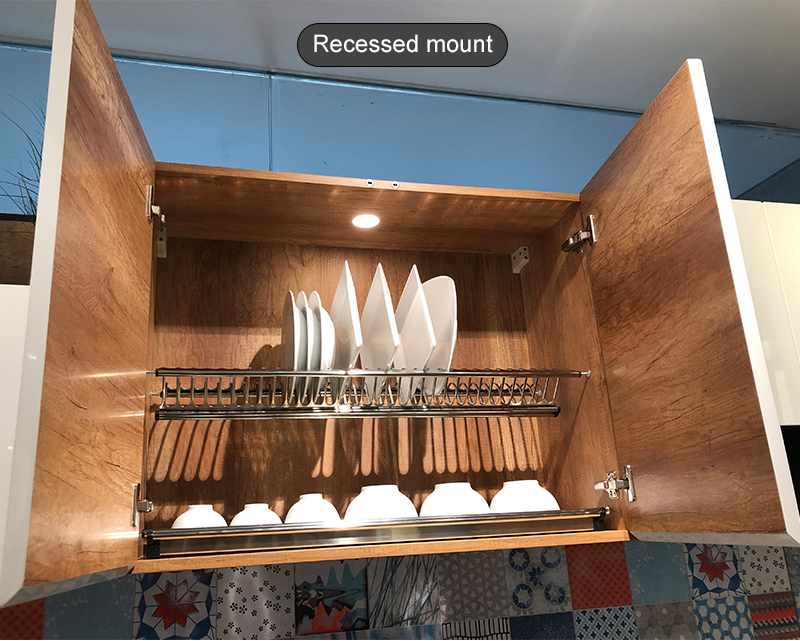

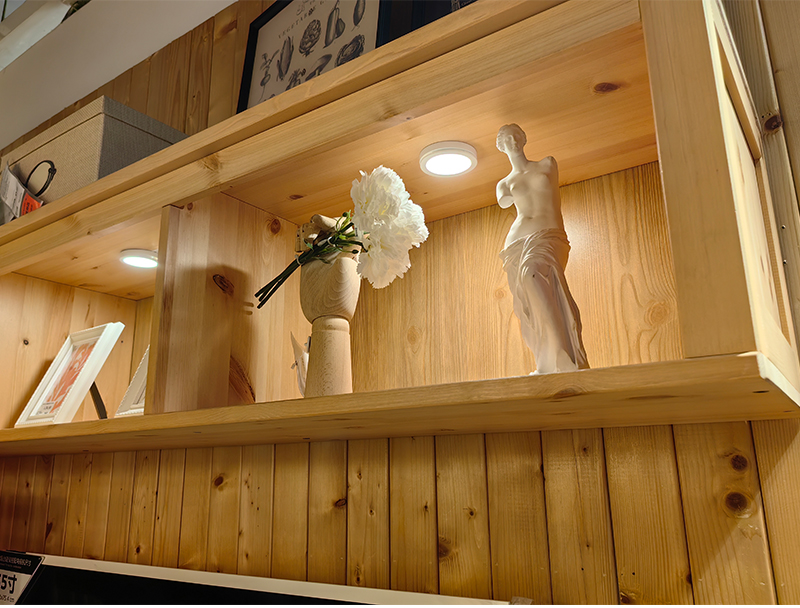

1.This Mini Round cabinet LED light can be surface or recessed mounted,very suitable for multiple cabinets,They are perfect for home and office lighting, bringing a warm and cozy atmosphere to any space. Additionally, these lights are ideal for display case lighting, allowing the items to be highlighted and showcased effectively. They also work in Shelf, providing sufficient illumination for placeholder.In generally, they are commonly used for showcase lighting, making the featured products stand out and capture attention.
2.For puck light series, We have other styles,such as,specialized PIR sensor spotlights, etc.You can look this: LED puck light.(If you want to know these products,please click on the corresponding location with blue color,Tks.)

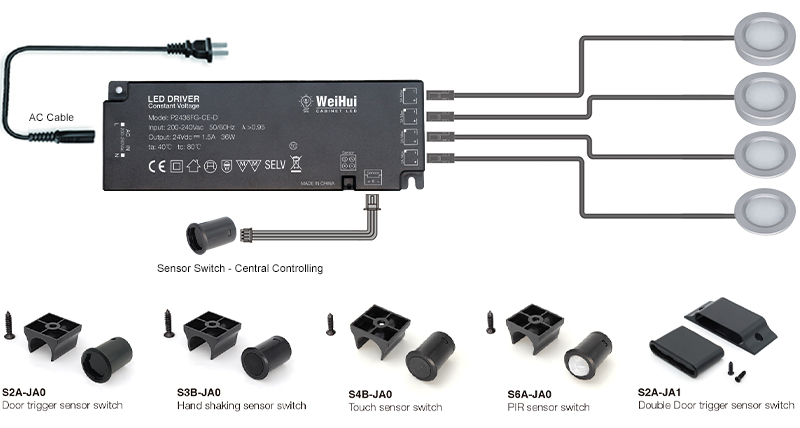

Our High brightness LED Spot Light have two Connection and Lighting solutions.The first is direct connection to the drive for power supply. The second is need to connect LED sensor switch and LED driver to be as a set.
( For more details, Pls check Download-User Manual Part)

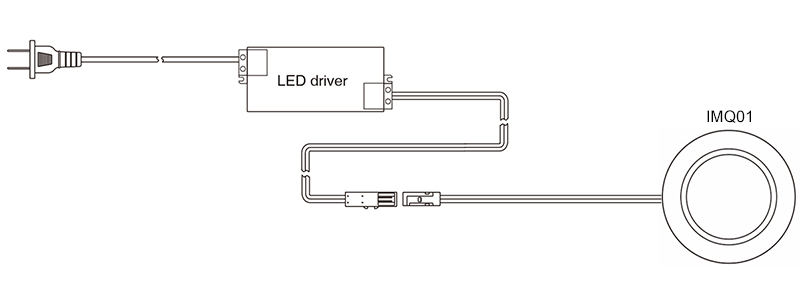

Picture 1:directly connect driver

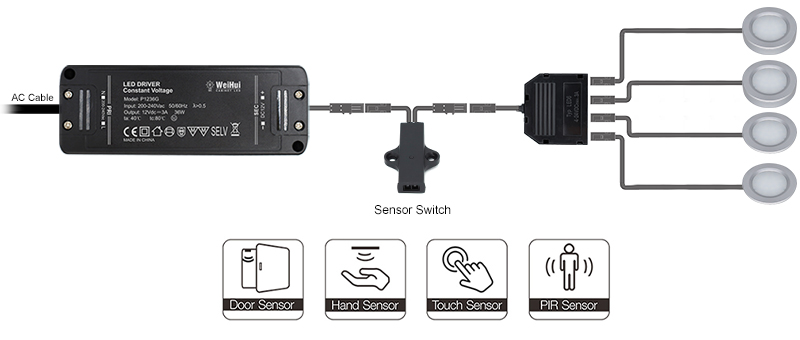

Picture 2: LED Driver + LED Sensor Switch ( Touch sensor here)
1. Part One: LED Puck Light Parameters
| Model | IMQ01 | |||||
| Installation Style | Surfaced Mounting | |||||
| Wattage | 2.5W | |||||
| Voltage | 12VDC | |||||
| LED Type | SMD2835 | |||||
| LED Quantity | 21pcs | |||||
| CRI | >90 | |||||

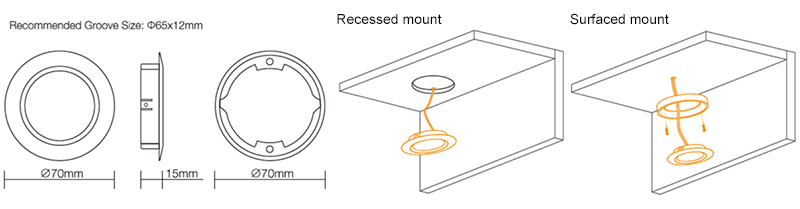

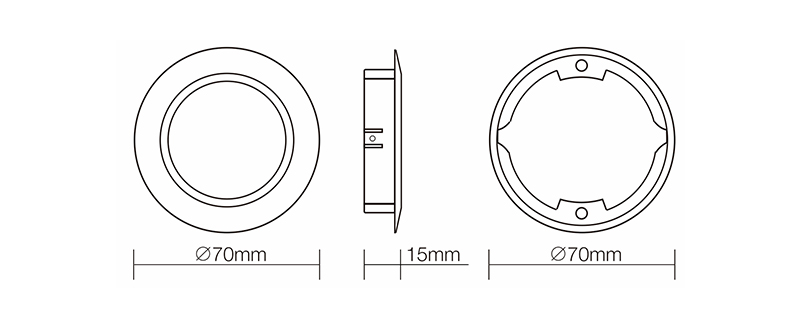

2. Part Two: Size information

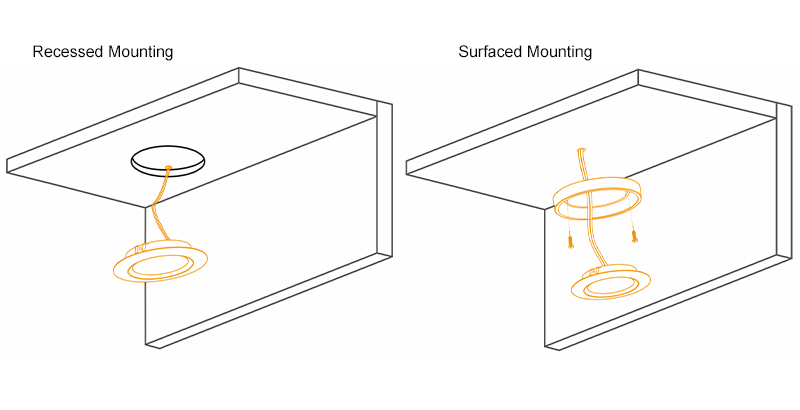

3. Part Three: Installation
4. Part Four: Connection Diagram
