In modern smart home systems, PIR ( Passive Infra-Red ) sensor switches are widely popular for their safety and convenience. It can automatically detect human motion to control the switch of lights or other electrical appliances; once a person leaves the sensing range, it will automatically turn off the light when no human motion is detected within the set time (Using Weihui Technology's Cabinet Led Motion Sensor, the light will automatically turn off in 30 seconds after a person leaves the sensing range.), greatly improving the convenience of life. This intelligent function ensures that the light is not turned off when no one is around and energy is not wasted, which meets the requirements of green environmental protection.
So, what are the common problems when using PIR sensor switches? This article will explore these problems and their solutions to help users better use PIR sensor switches.
Ⅰ. Working principle of PIR sensor:
Before discussing these common problems, let's first understand the working principle of PIR sensor:
PIR sensor, that is infrared human body induction sensor (Passive Infrared Sensor), is a common sensor used to detect human or animal activities. Its working principle is as follows: PIR sensor is based on infrared radiation induction. All objects (usually people) radiate infrared rays to varying degrees. When a person enters the sensing range of the PIR sensor, the sensor senses the infrared radiation emitted by the human body and triggers the switch, lighting up the light or starting other devices. So when installing the Infrared Sensor Switch, try to avoid airflow, HVAC ducts and heat sources, because if they are too close to the sensor, they may be triggered inadvertently.
Ⅱ. Common Problems and Solutions
1. The light is not on
Reason: When the power is normally connected and the sensor is normal in all aspects, the PIR sensor switch does not respond. It may be that the installed sensor position is unreasonable, blocked by objects, or dust and dirt are attached to the sensor surface, affecting the performance of the sensor.
Solution: Install the PIR sensor position in a reasonable position, clean the dust and dirt on the sensor surface regularly, and ensure the sensitivity of the sensor.
2. False trigger------the light is always on
Reason: When the sensor is normal in all aspects, the light remains on when no one passes by. It may be that the sensor is installed too close to the heat source (such as air conditioning, heating, etc.), causing the sensor to misjudge.
Solution: Install the PIR sensor position in a reasonable position and ensure that there is no heat source around the sensor.
3. Insufficient sensing range, unable to meet coverage requirements
Reason: Since the maximum detection distance of the proximity switch sensor varies depending on the product type and technical parameters, it is necessary to first confirm the maximum detection distance of the proximity switch sensor used and ensure that human activities are within the effective sensing range.

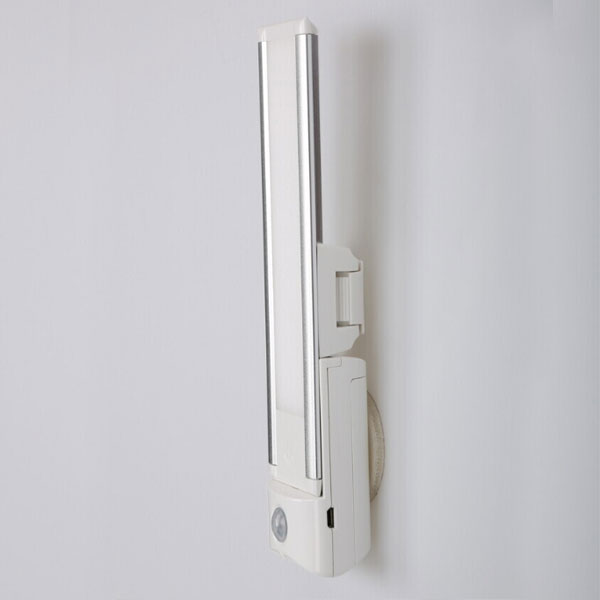

Solution: When purchasing, you should choose a suitable sensor according to your needs. The sensing distance of our Weihui PIR motion detector is 1-3 meters, which is specially designed for cabinets and wardrobes. Please contact us if you need it.
4. The signal indicator light is always on, there is no signal change or the signal light keeps flashing
Reason: First, it may be due to a fault in the sensor itself, a fault in the signal processing unit, a poor or wrong connection of the signal line, which causes the signal light to be always on or flashing; or the power is not connected, so that the sensor does not receive the signal.
Solution: Replace the faulty sensor, check the connection and settings of the signal processing unit, check the power cord, etc. If the above operations cannot solve your problem, it is recommended to contact a professional electrician for inspection and repair, or contact the supplier to solve the problem.
Ⅲ. Purchase, installation and maintenance suggestions
To ensure the long-term stable operation of the PIR sensor switch, the following provides you with a series of purchase, installation and maintenance suggestions:
1. Choose a guaranteed PIR sensor supplier who can provide you with high-quality products and services. Weihui has more than 10 years of experience in motion sensor pir factory research and development, and provides you with a three-year warranty service, so you can buy it with confidence.
2. Clean the dust and dirt on the sensor surface regularly, and be careful to avoid using solvents or corrosive cleaners, because such cleaners may damage the sensor and affect the sensor performance. You can use a clean soft cloth to gently wipe the sensor surface to keep the sensor surface clean and free of foreign matter.
3. Install the PIR sensor in a reasonable position and avoid obstacles, because obstacles may affect the sensor's sensing and cause it to be unable to accurately sense the surrounding environment; at the same time, make sure that the sensor is not installed around the heat source, otherwise it will interfere with the operation of the sensor switch.
4. Buy a sensor switch that meets your needs. Because the sensing range is small, multiple sensors need to be installed to control the lights, resulting in unnecessary cost expenditures; if the sensing range is too large, it will lead to unnecessary waste of resources and not meet the requirements of sustainable development of energy.
5. Check the power supply and test the sensor sensitivity regularly: Check the power connection regularly to avoid loose or damaged power connections; in addition, regularly test the sensitivity and sensing range of the sensor to ensure that the sensor is always in normal working condition.
IV. Summary
The PIR sensor switch brings great convenience to our lives, but there will also be some problems during our use. This article lists the common problems and solutions of the PIR motion sensor switch, hoping to help you use the sensor and enjoy the comfort and convenience brought by the smart home. Choose the sensor switch of Weihui Technology to make your smart home experience smoother.
