S7B-A1 Mirror IR Touch Sensor With Dimmer
Short Description:
Advantages:
1.【 characteristic 】Mirror Sensor， Installed behind a mirror or wooden board, Touch the mirror or board to control the switch.
2.【 more beautiful】Switch installation rear mirror can not see the switch accessories, just see the backlight exposed touch mark, beautiful.
3.【easy installation】3M sticker, no slot drilling, more convenient installation.
4.【Enhance atmosphere】The dimming function can adjust the brightness according to the scene to enhance the atmosphere.
4.【Reliable after-sales service】With a 3-year after-sales guarantee, you can contact our business service team at any time for easy troubleshooting and replacement, or have any questions about purchase or installation, we will do our best to help you.
Switch parameters are posted on the switch, and blue and white indicators are displayed on the back.
3M sticker, more convenient installation
The switch is installed on the back of the mirror, which does not affect the overall aesthetic feeling. The backlight of the switch will show the position and status of the switch, and the light will be on/off with a slight press. The long press can adjust the brightness you want.
Because the switch has the ability to penetrate the mirror, the switch can be applied to various mirrors such as bathroom mirrors, shopping malls bathroom mirrors and makeup tables, which is easy to install and use, and does not affect the overall beauty of the mirror.
1.Bathroom scene application
2.Bathroom scene application
1. Separate Controlling system
When you use the normal led driver or you buy led driver from other suppliers, You can still use our sensors.
At first, You need to connect led strip light and led driver to be as a set.
Here when you connect led touch dimmer between led light and led driver successfully, You can control the light on/off.
2. Central Controlling system
Meanwhile, If you can use our smart led drivers, You can control the whole system with only one sensor.
The sensor would be much competitive. and No need to worry about compatibility with led drivers too.
1. Part One: Mirror Switch Parameters
| Model | S7B-A1 | S7D-A1 | ||||||
| Function | ON/OFF/Dimmer | ON/OFF/Dimmer/CCT Change | ||||||
| Size | 50x33x10mm, 57x46x4mm(Clips) | |||||||
| Voltage | DC12V / DC24V | |||||||
| Max Wattage | 60W | |||||||
| Detecting Way | Touch Tyoe | |||||||
| Protection Rating | IP20 | |||||||

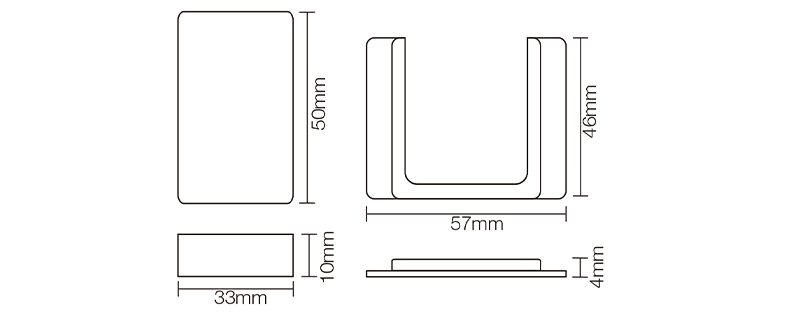

2. Part Two: Size information

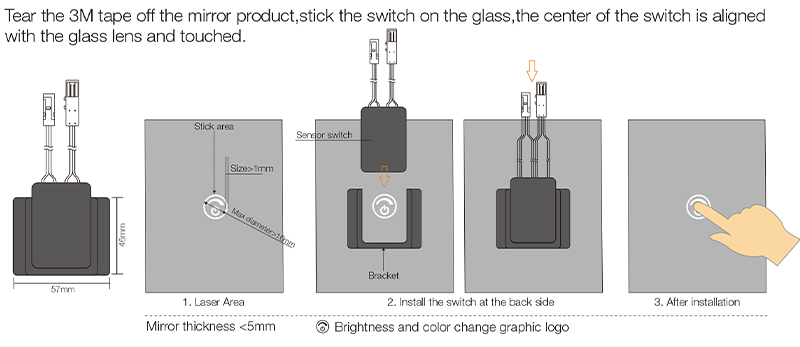

3. Part Three: Installation

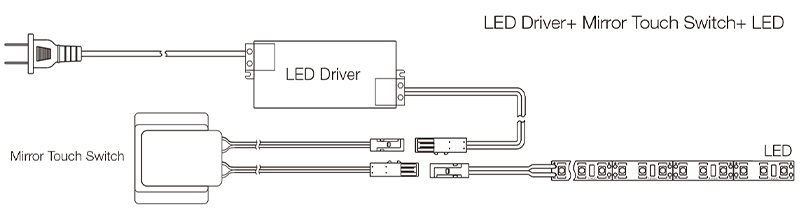

4. Part Four: Connection Diagram
