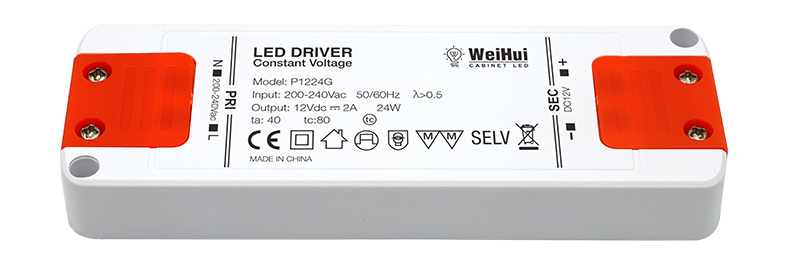

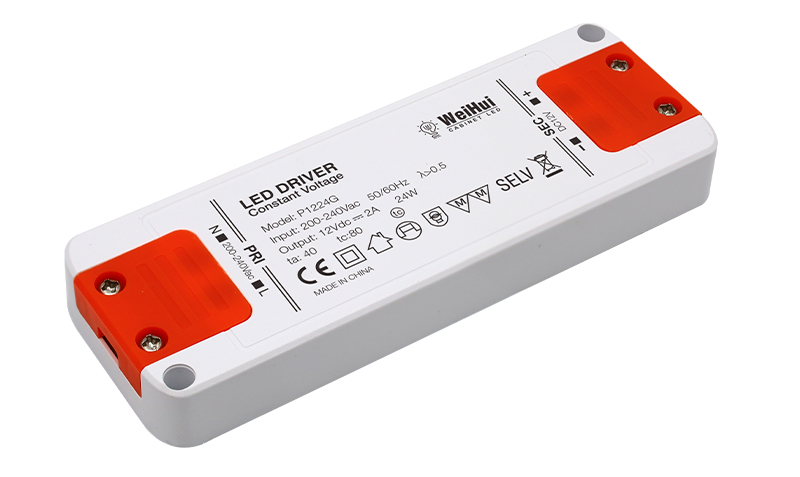

P1224G 12V 24W Led Power Supply Adapter (PF>0.5)
Short Description:
【Technical Data】Designed for home and business lighting, this stand-alone Dupont Led Driver is only 16 mm thicknesses.
【Characteristic】Fully independent Switching Power Supply system to customized different specifications of power cords.
【Controlling system-Sensors】Conventional output hole is a output ports, can be connected to the splitter box according to the rated maximum power.
Competitive price with good quality and affordable price.
3 years warranty.
Free sample test is welcome.
Dupont Led Driver for a variety of applications, suitable for low power requirements of the application, 24W Switching Power Supply can provide reliable power support for as many as possible low power devices, its power is enough to deal with low power domestic and commercial lighting systems, more environmentally friendly and low-carbon.

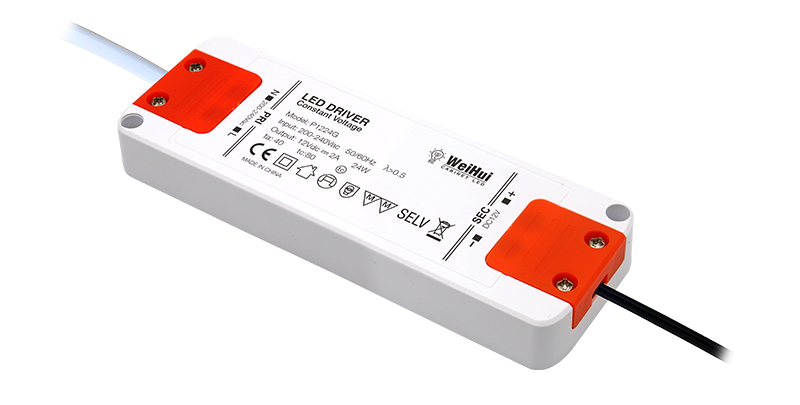

This Dupont Led Driver has a customized specification power cord, which can be customized to different specifications, and an L815 output cord, which you can connect to a splitter box to provide more output ports (Be careful not to exceed the maximum power)

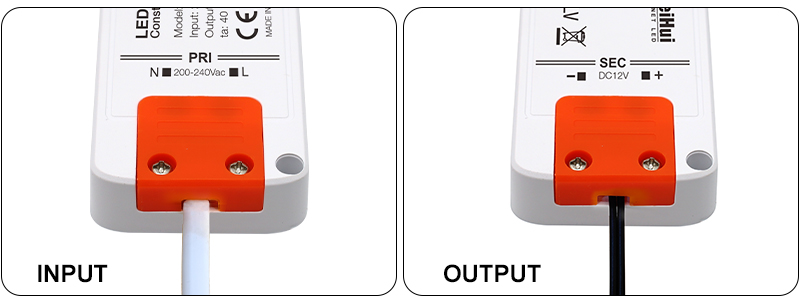

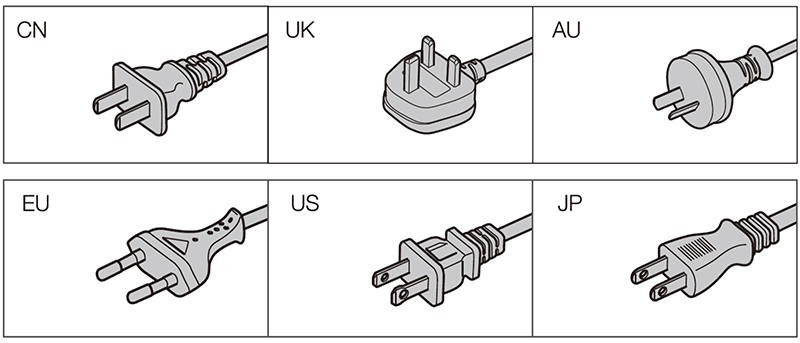

The Switching Power Supply input port is designed to allow the connection of a wide range of standard power cords, whether it be different plug types, cable sizes, or different voltage standards (e.g., 200V-240V worldwide).
This compatibility ensures that the Dupont Led Driver unit will work in different regions of the world and be able to cope with a wide range of power access requirements.
200-240v for Euro/Middle east/ Asia area,etc
1. Part One: Power Supply
| Model | P1224G | |||||||
| Dimensions | 130×46×16mm | |||||||
| Input Voltage | 220-240VAC | |||||||
| Output Voltage | DC 12V | |||||||
| Max Wattage | 24W | |||||||
| Certicification | CE/ROHS | |||||||
| Input Frequency | 50/60HZ | |||||||
2. Part Two: Size information

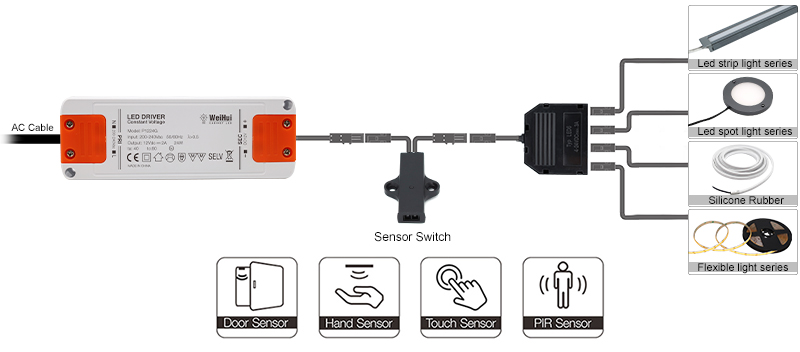

3. Part Three: Connection Diagram
