P24100FG 24V 100W Driver For LED Strips ( PF>0.5)
Short Description:
【Technical Data】Designed for home and business lighting, this stand-alone Power Adapter Transformer is only 18 mm thicknesses.
【Category】Square shape, available in black and white finishes.
【Characteristic】Fully independent Battery Powered Spotlight system to accommodate different sizes of power cords.
【Controlling system-Sensors】8 output ports with a maximum current of 3A.
【Smart Driver Control System】Compatible with both 3PIN and 4PIN connectors.
Competitive price with good quality and affordable price.
3 years warranty.
Free sample test is welcome.
LED driver for a variety of applications, suitable for high power requirements of the application, 100W Led Industrial Power Supplies can provide reliable power support for as many as possible high power devices, its power is enough to deal with high power domestic and commercial lighting systems, more environmentally friendly and low-carbon.
White Finish in series
Black Finish in series
This completely self-contained Led Industrial Power Supplies has input connectors that fit perfectly on different sized power cords and provides as many as 8 outputs up to 3A.
Power Adapter Transformer input port is designed to allow the connection of a wide range of standard power cords, whether it be different plug types, cable sizes, or different voltage standards (e.g., 200V-240V worldwide).
This compatibility ensures that the Led Industrial Power Supplies unit will work in different regions of the world and be able to cope with a wide range of power access requirements.
200-240v for Euro/Middle east/ Asia area,etc
The Power Adapter Transformer can support connecting and driving devices with either 3PIN or 4PIN interfaces, whether they are simpler power on/off controls 3PIN or 4PIN devices with more complex regulation such as speed or dimming.
The Led Industrial Power Supplies adapts to both 3PIN and 4PIN connectors, allowing users to connect different sensors according to their connector type. This makes compatible sensors (e.g. light sensors, motion sensors etc.) easier and more widely applicable.
As shown in the figure, the 3PIN terminal port is connected to the door sensor, which can control up to 8 different LED fixtures.
The compatibility of Led Industrial Power Supplies makes the integration of different sensors easier, reducing the need for additional controllers or power supplies.
1. Part One: Power Supply
| Model | P24100FG | |||||||
| Dimensions | 201×71×18mm | |||||||
| Input Voltage | 220-240VAC | |||||||
| Output Voltage | DC 24V | |||||||
| Max Wattage | 100W | |||||||
| Certicification | CE/ROHS | |||||||

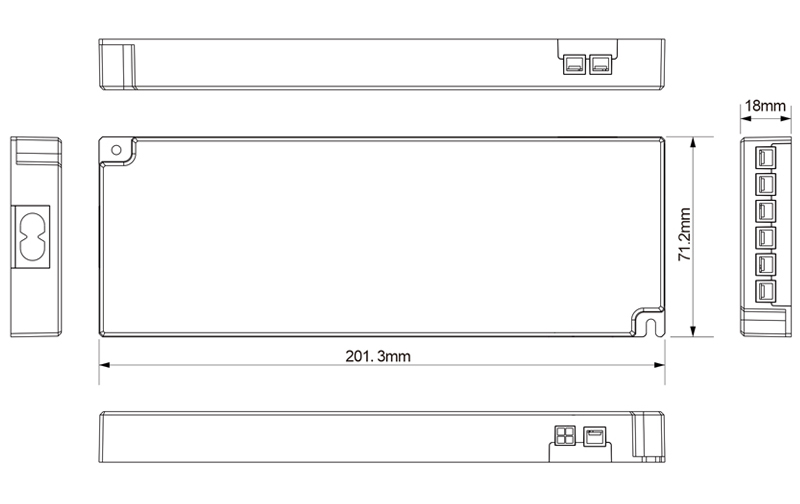

2. Part Two: Size information
3. Part Three: Connection Diagram
