IQ01-Recessed Decorative LED Puck Light
Short Description:
Advantages：

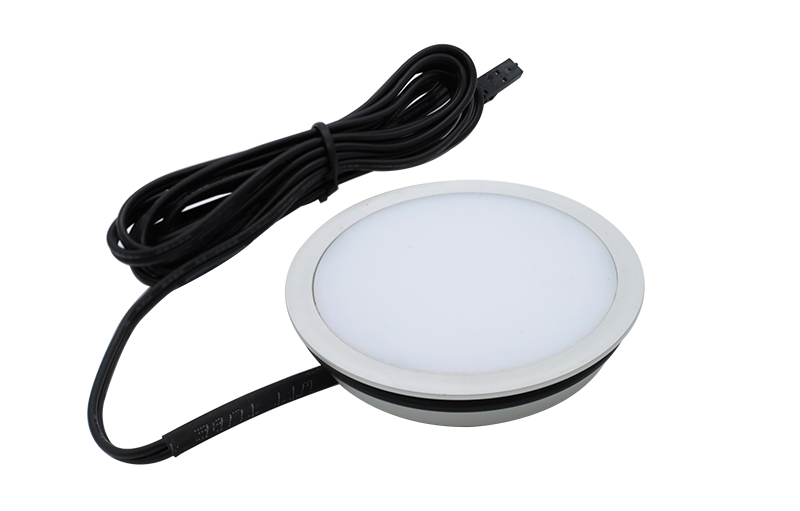

1.The silver sleek surface is Current mainstream finish,and you can customize the finishes to perfectly match your aesthetic preferences.(As Picture below)
2.Mini round style with Hand Sensor,low weight for easy installation.
3.12V 1.5W ultra low power, surface lighting source is soft and even.（For more parameter details,Pls check Technical Data part,Tks）
4.Competitive price,reliable quality.
5.Free samples welcome to test.
( For more details, Pls check VIDEO Part),Tks.
Product more details
1.Size Introduction,The front size is Φ65mm,the section size is Φ13mm.
2.Cable light up to 1500mm,direct connection to the 12V DC drive for power supply.
3.Installation way,it's recessed mounting,we recommended groove size is Φ60*13mm,suitable for all wooden cabinets

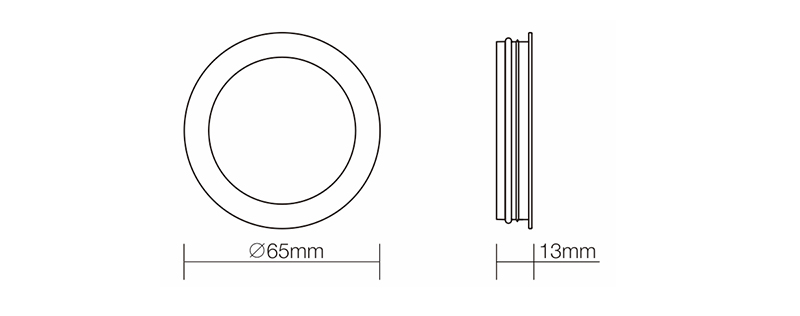

Picture1：Product plane size

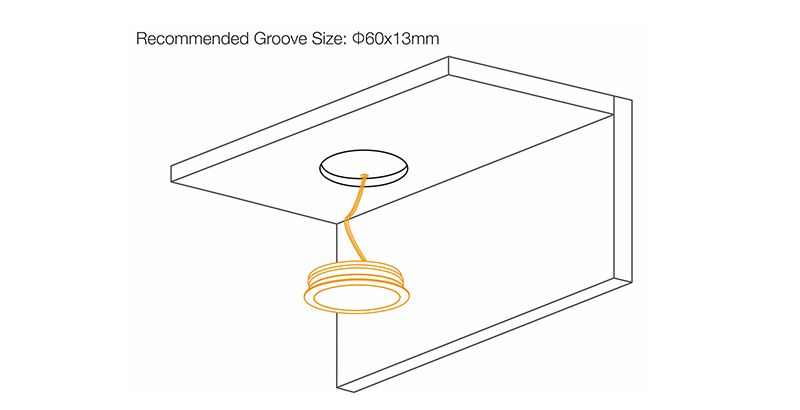

Picture2:Installation
1.With its DC12V power supply, this Multi-cabinet small spotlight ensures not only energy efficiency but also consistent brightness.providing soft and even illumination.

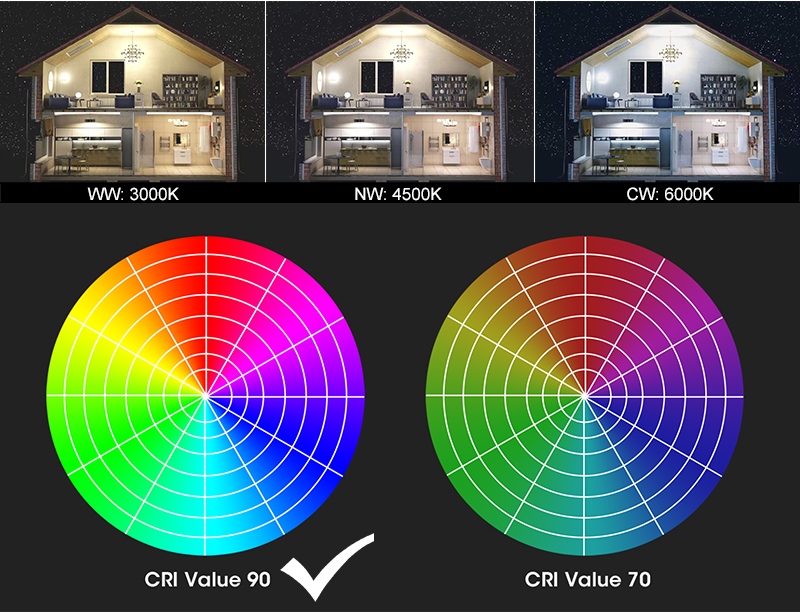

2.With three color temperature options (3000k, 4000k, 6000k), you can effortlessly create the perfect ambiance to suit any setting.
3.The high Color Rendering Index (CRI>90) enhances the true colors of your surroundings, presenting them in their full glory.

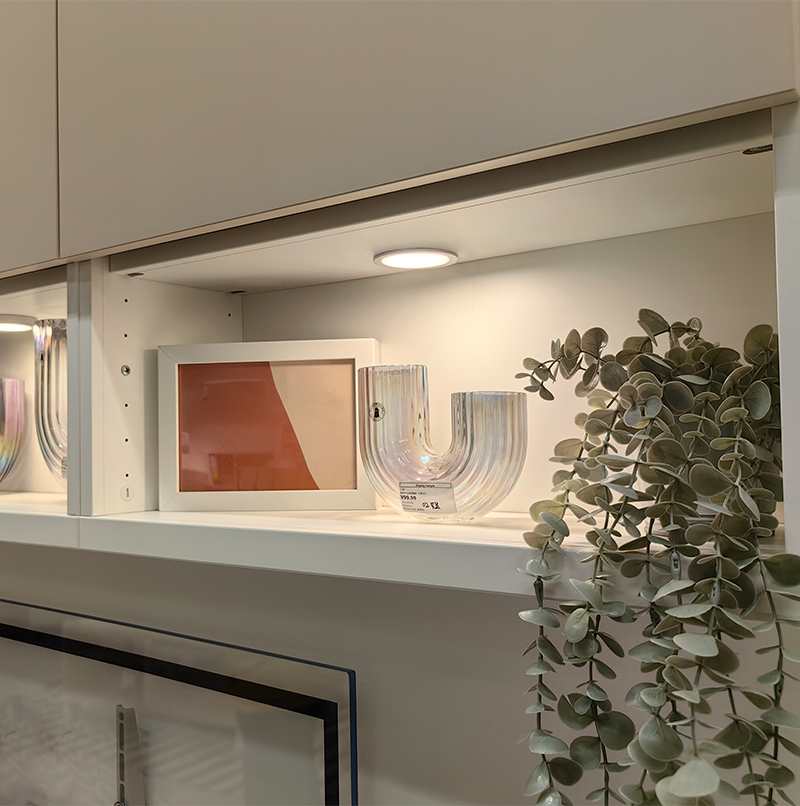

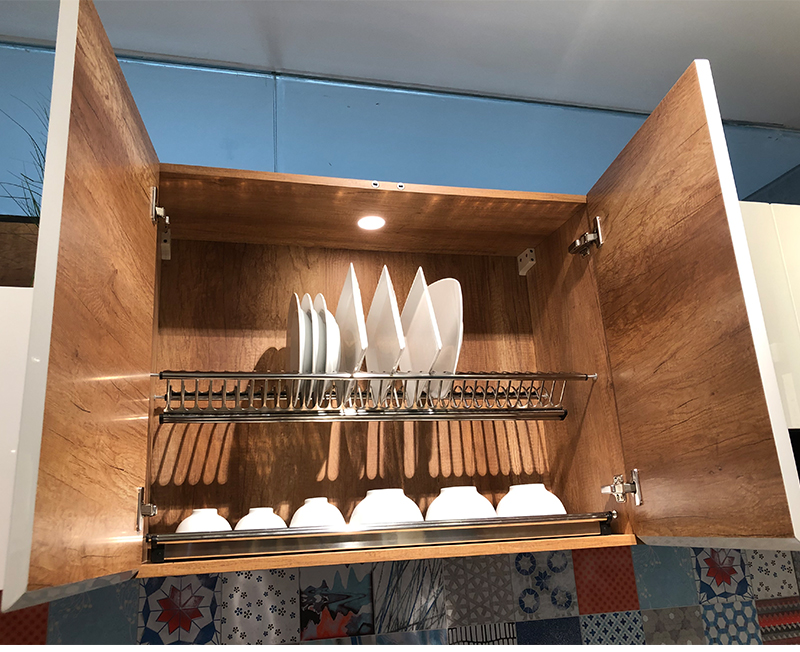

1.It can apply residential, commercial, or hospitality settings. The Decorative Led Puck Light is very suitable for lighting multiple cabinets, such as large closet rooms, kitchen sideboards, etc.It brightens up your environment with an effortless grace, illuminating every corner.
2.For puck light series, We have other styles,such as,spotlight series.(If you want to know these products,please click on the corresponding location with blue color,Tks.)
For Mini puck light with Touch Sensor ,You have two Connection and Lighting solutions.The first is direct connection to the drive for power supply. The second is need to connect LED sensor switch and LED driver to be as a set.
( For more details, Pls check Download-User Manual Part)

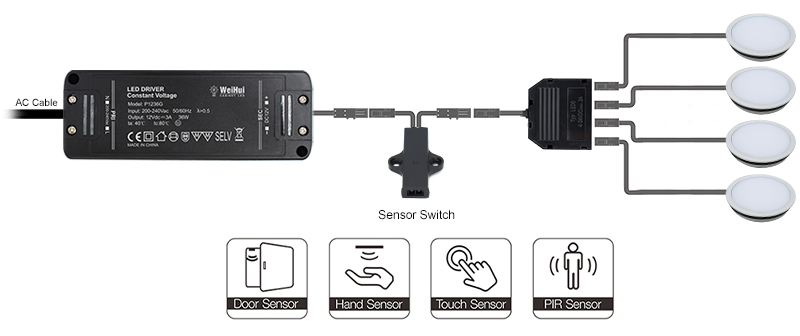

Picture 1:LED Common Driver& LED Sensor series.
Picture 2: LED Smart Driver + LED Central controlling Sensor Switch. (Having different control effect)
1. Part One: LED Puck Light Parameters
| Model | IQ01 | |||||
| Installation Style | Surfaced Mounting | |||||
| Wattage | 1.5W | |||||
| Voltage | 12VDC | |||||
| LED Type | SMD2835 | |||||
| LED Quantity | 28pcs | |||||
| CRI | >90 | |||||
2. Part Two: Size information
3. Part Three: Installation

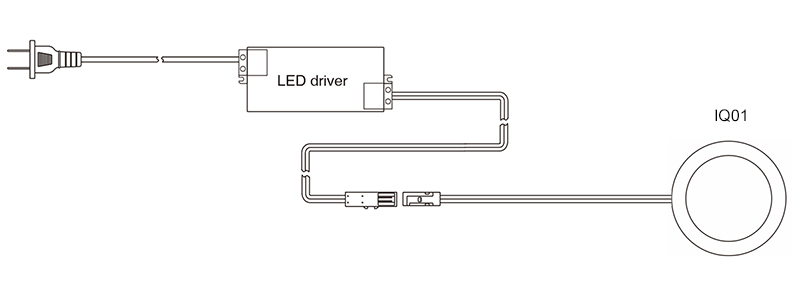

4. Part Four: Connection Diagram
