IM01 Ultra-thickness Furniture LED spotlight
Short Description:
Advantages：

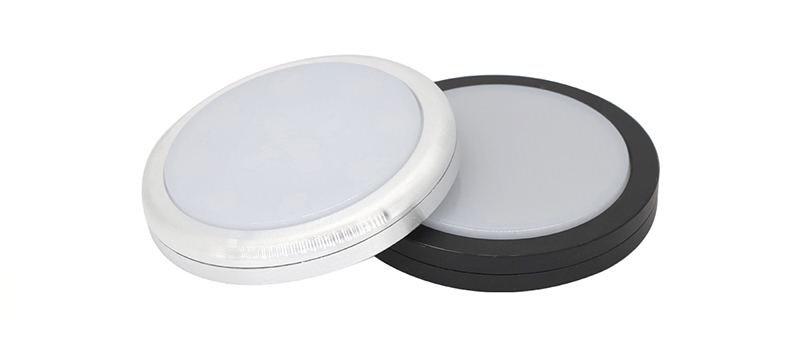

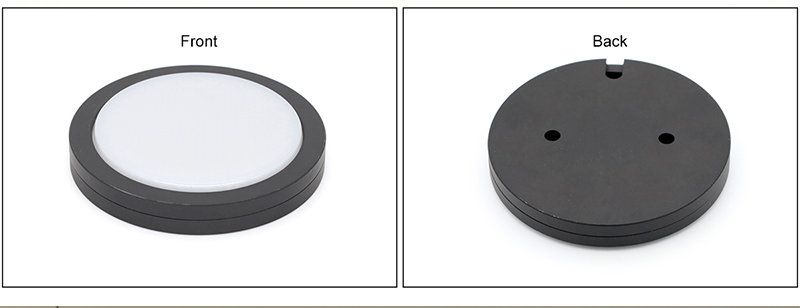

1.Usually having Silver or Black sleek finish,welcome to customise.(As Picture below)
2.Mini round style,low weight for easy installation.
3.12V 2W ultra low power, surface lighting source is soft and even.（For more parameter details,Pls check Technical Data part,Tks）

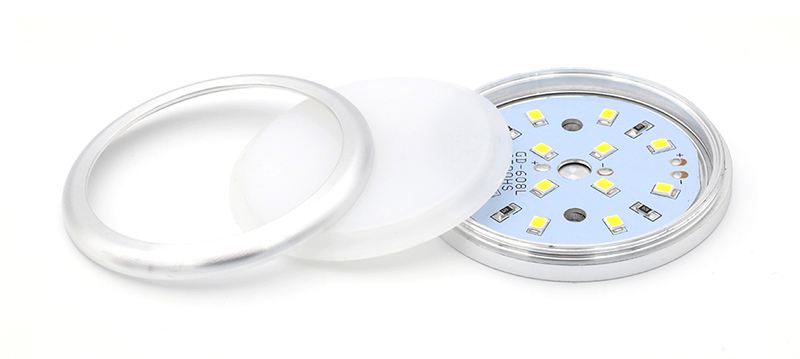

4. High-quality aluminum material,ensures fast heat dissipation.
5.Competitive price,durable using.
( For more details, Pls check VIDEO Part),Tks.
Product more details

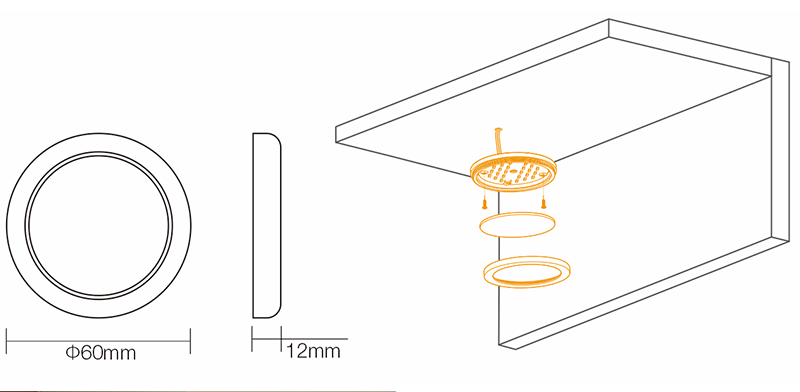

1.Size Introduction,The front size is Φ60mm,the section size is Φ12mm.
2.Safe and economy,which cable light up to 1500mm,direct connection to the 12V DC drive for power supply.
3.Installation way,it's easily surfaced mounting by screws,suitable for all wooden cabinets
Firstly,This Surfaced Round LED Puck light offers three color temperature options - 3000k, 4000k, and 6000k. Whether you prefer a warm, cozy ambiance or a bright, crisp lighting, you can select the color temperature that best suits your needs.
Additionally, CRI > 90, this light provides accurate color representation, making your indoor spaces come to life.
In generally,the lighting effect,which is soft and even,not glaring.

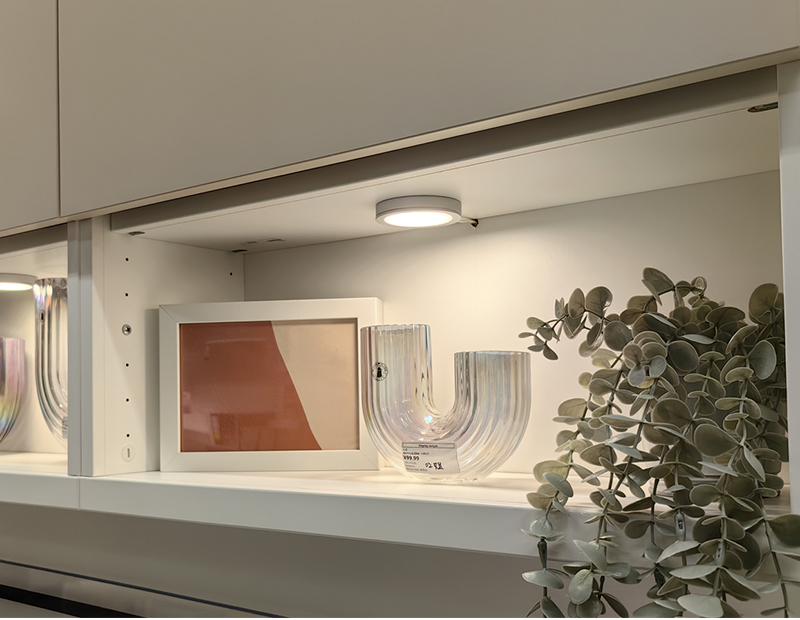

Part1:Lighting effect-soft and even
Part2:Color temperature

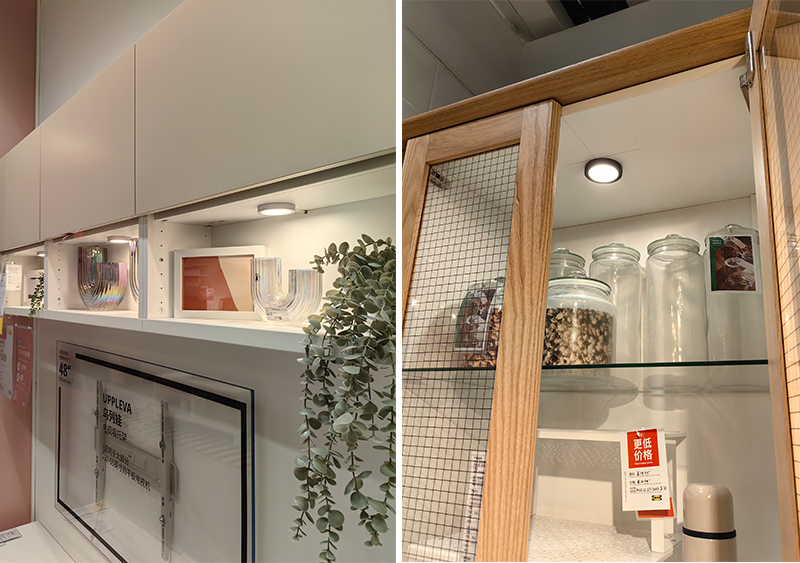

Due to the ultra-thickness Furniture LED spotlight is small in size and can be installed wherever lighting is needed,such as showcases, kitchen cabinets, and wardrobes,etc. In showcases, the LED puck light illuminates precious items, jewelry, or artifacts, In kitchen cabinets, these lights are installed to make it easier to find and access items, in wardrobes, the LED puck light provides efficient and localized illumination.
About other series,You can look this: spotlight series.(If you want to know these products,please click on the corresponding location with blue color,Tks.)

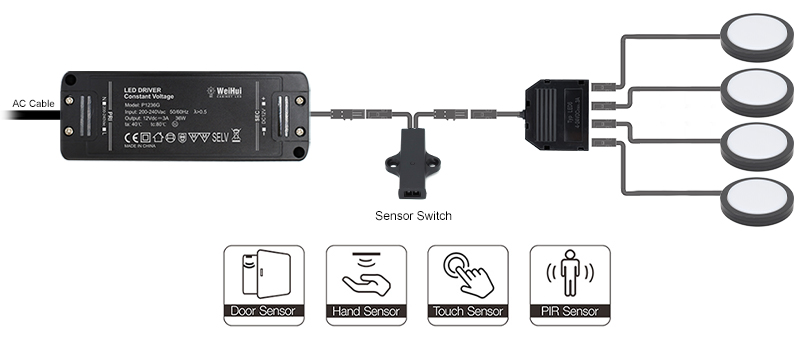

For Kitchen Spot Lights Led,You have two Connection and Lighting solutions.The first is direct connection to the drive for power supply. The second is need to connect LED sensor switch and LED driver to be as a set.
( For more details, Pls check Download-User Manual Part)

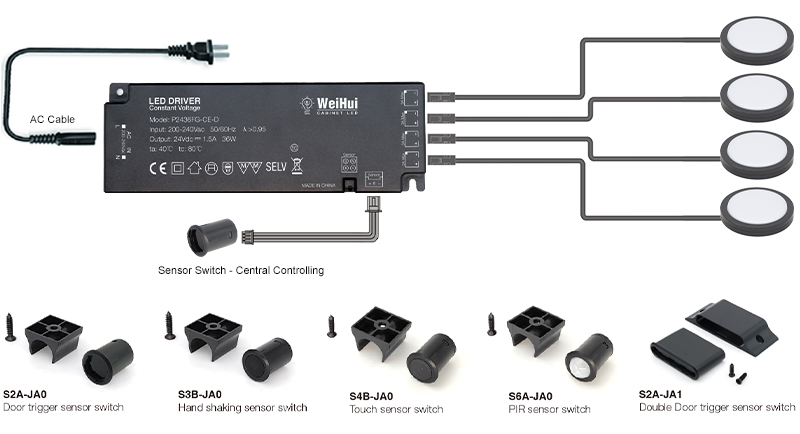

Picture 1:LED Common Driver& LED Sensor series.
Picture 2: LED Smart Driver + LED Central controlling Sensor Switch.
1. Part One: LED Puck Light Parameters
|
Model |
IM01 |
|
Install style |
Surface Mounting |
|
Color |
Silver/Black |
|
Color Temperature |
3000k/4000k/6000k |
|
Voltage |
DC12V |
|
Wattage |
2W |
|
CRI |
>90 |
|
LED Type |
SMD2835 |
|
LED Quantity |
12pcs |

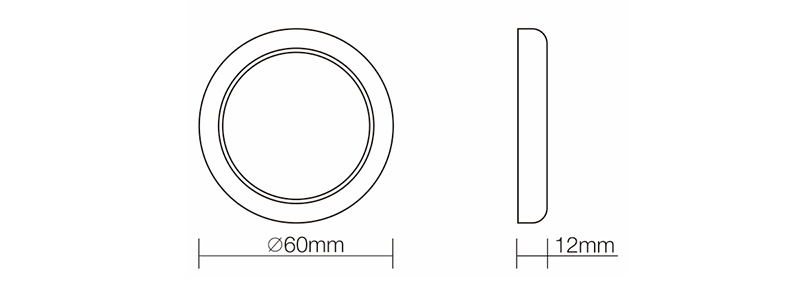

2. Part Two: Size information

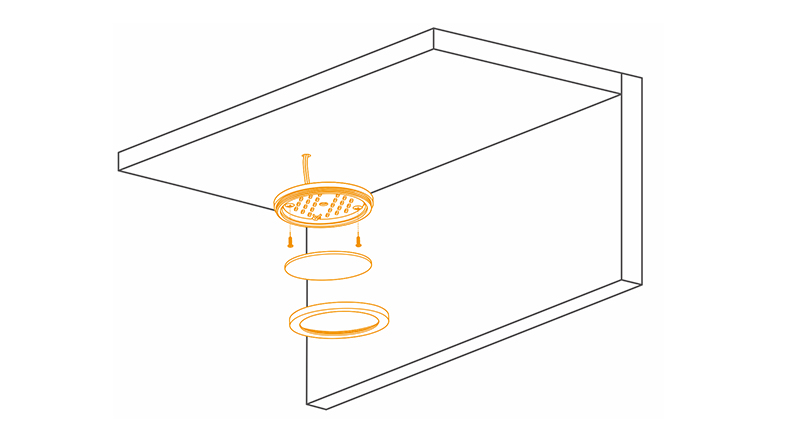

3. Part Three: Installation

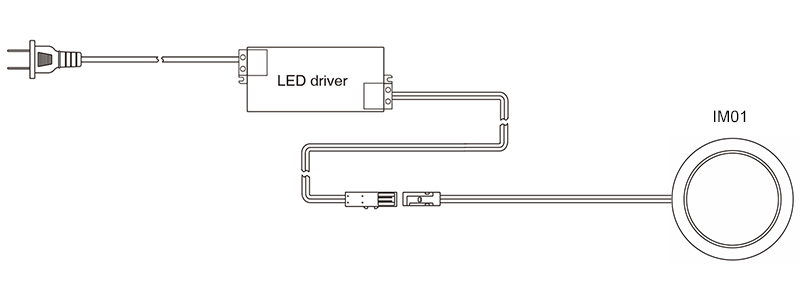

4. Part Four: Connection Diagram
